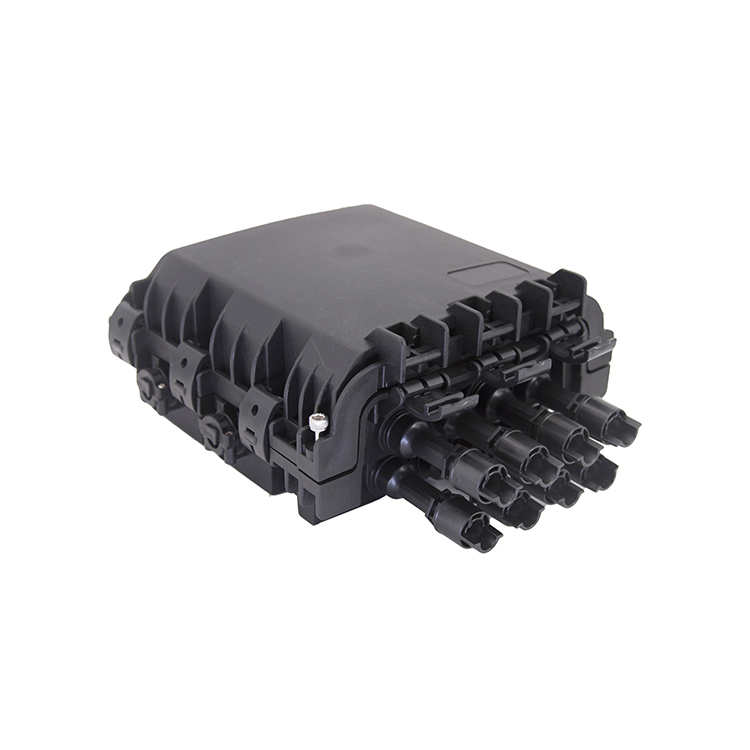

Fiber Splice Closure GJS-HC05

UT-King’s fiber optic splice closures are specially designed to protect joints of optic cable. Excessivefibers can be stored in storage baskets behind the splice trays. The optical fibers are fusion on sides of the tray. Onetray can splice 24 fibers; Available for 3 trays to splice total 72 fibers. Adopt modified PP material, with anti-UV,anti-aging and corrosion resistance material. Good quality and long service life. It is reusable.


Main Features

  •  Excessive fibers can be stored in storage baskets. Easy in fiber management.
  •  Fully mechanical sealing. Easy installation and reentry. No other sealing adhesive tape is needed.
  •  Base and dome sealed with clamp and O-ring system. Cable entry ports sealed with rubber.
  •  The splice trays are hinged for access to any splice tray, without disturbing other trays.
  •  The inner parts and fixing parts are made of stainless steel
  •  With a earthing device protect it from damage by lightning
  •  Compatible with most cable types(single fiber or ribbon), and cable constructions(loose tube, central core, slotted core, modular). And the product can be used in any environment (aerial, buried, handhole, manhole)and in many
  •  applications(tap-off, expressed, branch, and repair)

CONTACT +

Parameter

Model UT-GJS-HC05
Dimension 248x276x124.5mm
Material Dome & base :Modified P.P+GF
Tray: ABS
Capacity of FOSC 3x24 fibers
Max ratio 1x8 1pcs plc spltiter
Diameter of Cable 2 inlets and 2 outlets < 11mm
Outlet of Cable 8 round ports for drop cable
Net Weight 2.5 kg
Outter carton size 630*410*375mm
number of Packing 8 pcs/ctn
weight 20kg /ctn
