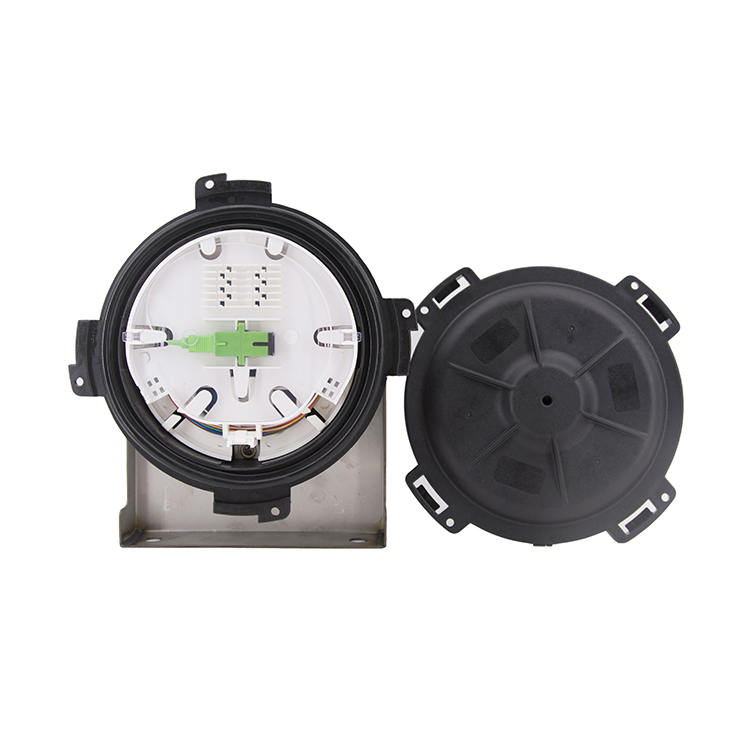

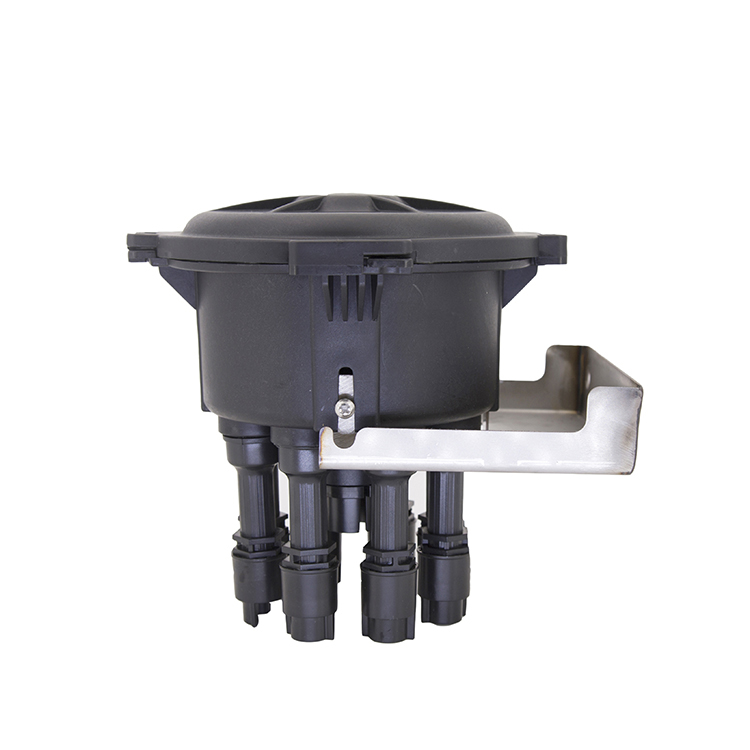

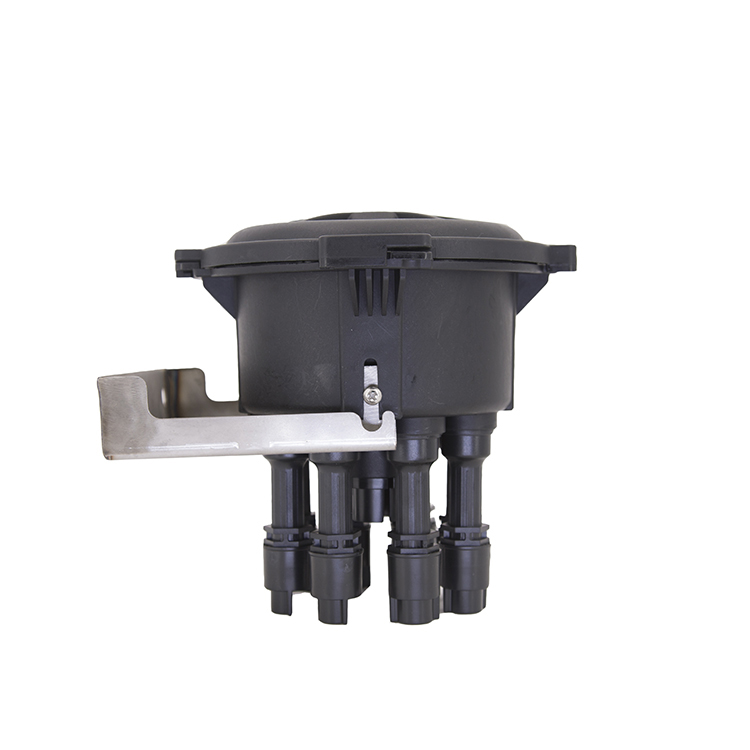

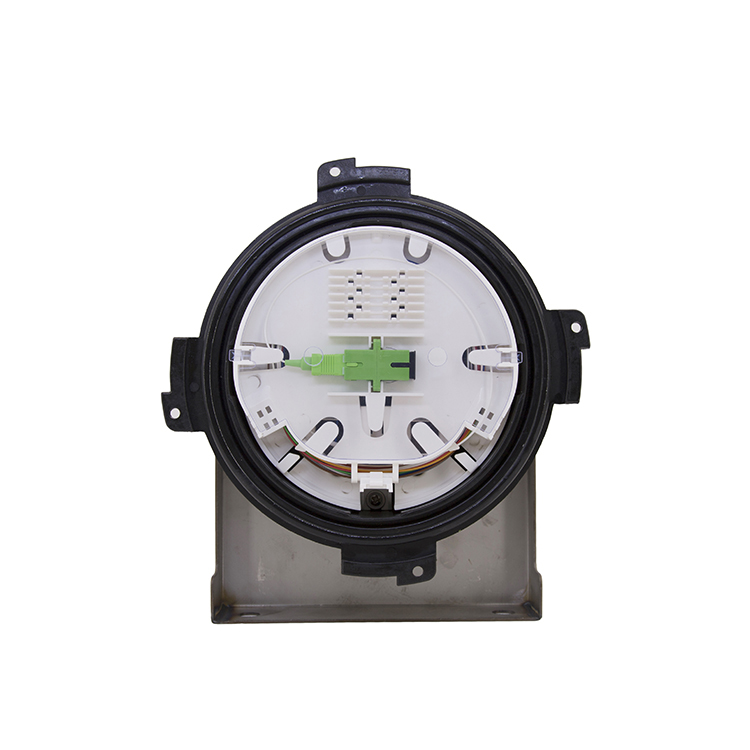

Dome Type Fiber Splice Closure GJS-DC04

UT-King’s fiber optic splice closures are used throughout the network, including the fiber trunk, feeder, distribution, and last mile segments. Our specially designed to protect joints of optic cable. Excessive fibers can be stored in storage baskets behind the splice trays. The optical fibers are fusion on sides of the tray. One tray can splice 12 fibers; Available for 1 trays to splice total 12 fibers. Adopt modified PP material, with anti-UV, anti-aging and corrosion resistance material. Good quality and long service life. It is reusable.

Main Features

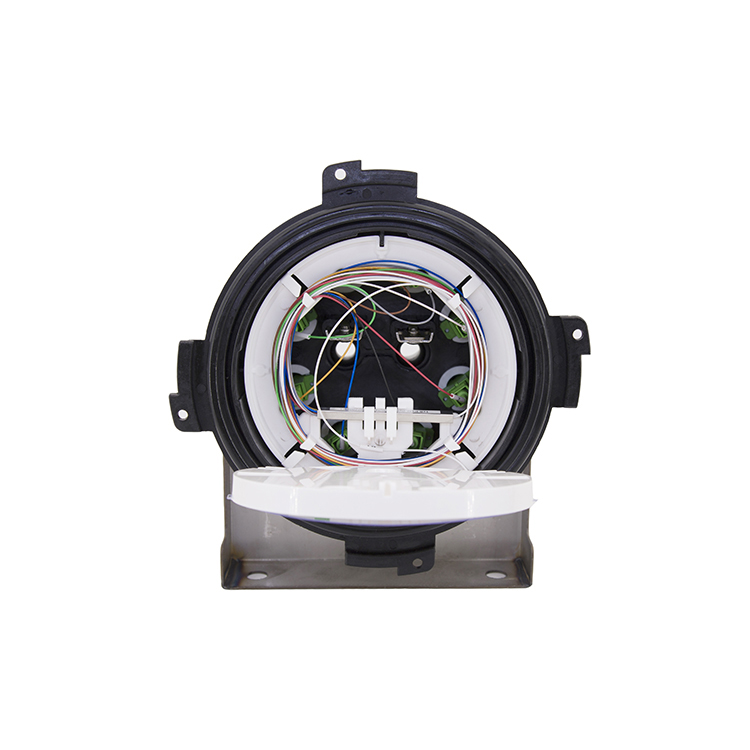

  •  Excessive fibers can be stored in storage baskets. Easy in fiber management.
  •  Fully mechanical sealing. Easy installation and reentry. No other sealing adhesive tape is needed.
  •  Base and dome sealed with clamp and O-ring system. Cable entry ports sealed with rubber.
  •  The splice trays are hinged for access to any splice tray, without disturbing other trays.
  •  The inner parts and fixing parts are made of stainless steel
  •  With a earthing device protect it from damage by lightning
  •  Compatible with most cable types(single fiber or ribbon), and cable constructions(loose tube, central core, slotted
  •  core, modular). And the product can be used in any environment (aerial, buried, handhole, manhole)and in many applications(tap-off, expressed, branch, and repair)

CONTACT +

Parameter

Model UT-GJS-DC04
Dimension 182x183mm
Capacity of FOSC 1 splice Tracy(12 core)

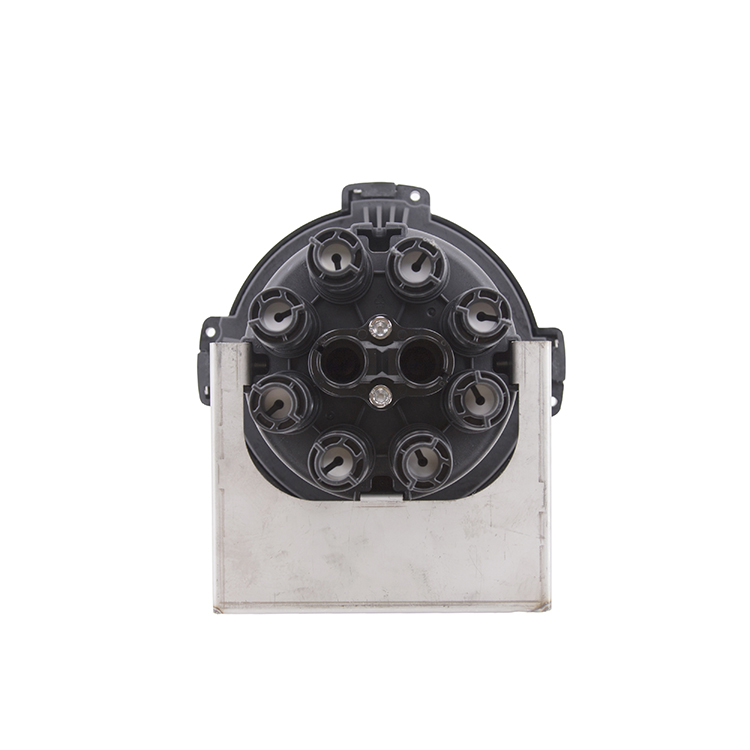

Cable entry ports 2 in 8 out
Adapter 8 pcs SC adapters available
Protection level IP68
material Dome & base :Modified P.P+GF
Tray: ABS
Net Weight 1.2kg
Outter carton size 450*450*440mm
number of Packing 8 pcs/ctn
weight 18kg /ctn
