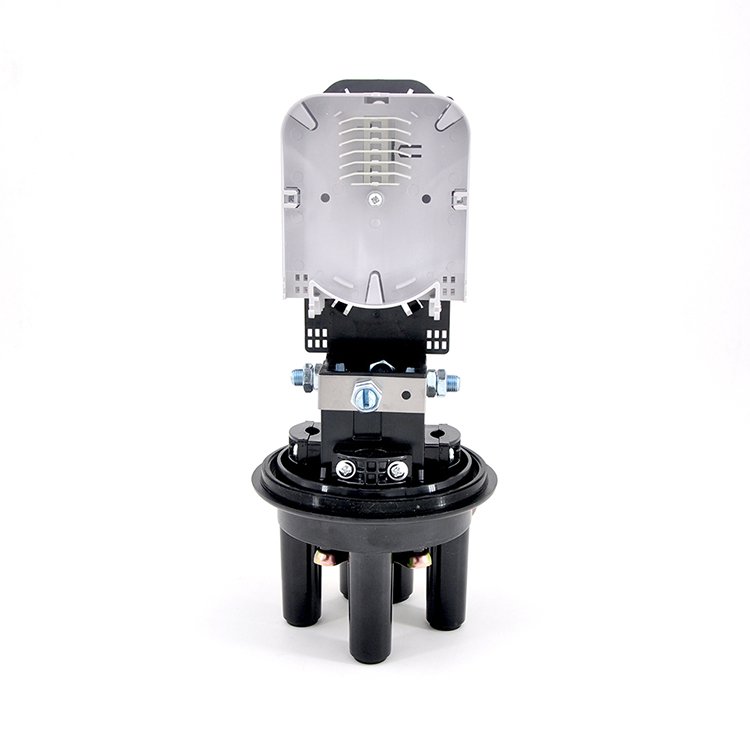

Fiber Splice Closure-GJS-DC01

UT-King’s fiber optic splice closures are used throughout the network, including the fiber trunk, feeder, distribution, and last mile segments. Our closure are normally used to connect optical cables in the long-distance transmission network, closure also routes and branches optical fibers.fiber to the home (FTTH) is a type of point to multiple points (P2MP) network with many branching points, so closures are widely used to implement cable distribution, optical fiber splitting, and flat drop cable output.

Main Features

  •  Widely applied in aerial,direct and branch connection for cables lower than 360 fibers.
  •  suitable for extreme climate,
  •  as it is made from composite engineering plastic filled with sealing material
  •  The inner and fastening pieces are made of stainless steel.
  •  This product can be opened repeatedly after being sealed

CONTACT +

Parameter

Model UT-GJS-DC01
Dimension 300mm*190mm
Capacity of FOSC Bunchy:48(cores)
Cable entry ports 5 pcs
Diameter of Cable Φ8mm~Φ20 mm
Assemmbling method Aerial,Pipeline,Underground,hand-holes
Protection level IP68
Net Weight 1.6 kg
Outter carton size 810*430*325mm
number of Packing 10 pcs/ctn
weight 18kg /ctn
