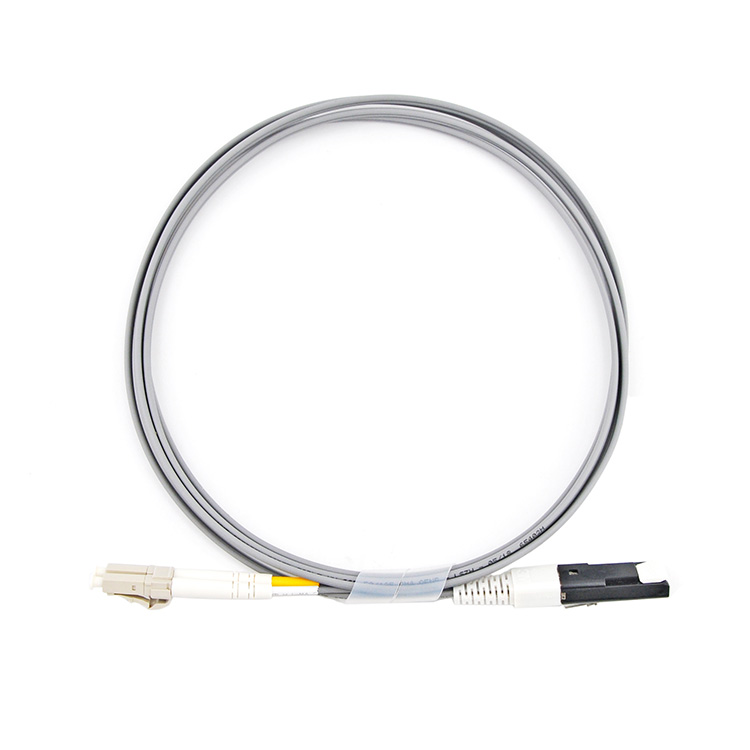

The Volition systems LC to VF45 patch cord from 3M is used to connect computer stations and other optical equipment with existing Volition (VF45) style networks. All VF-45 patch cords are constructed with the innovative 3M ”GGP“ high-strength coated optical fiber, providing unmatched durability and tight bend radius features for the abusive desktop environment.
| Parameters | Standard Fiber Cable Assemblies | |
| Fiber Type | SM(G.652/G.657A) | MM(OM1/OM2/OM3) |
| Jacket Materials | LSZH/OFNR/PVC | |
| Connector Type | SC/LC/ST/LC/MU/MTRJ/MPO/E2000 | |
| Ferrule Materials | Ceramic | |
| Testing Wavelengths | 1310±30/1550±30nm | 850±30/1300±30nm |
|
Insertion Losss(dB) TIA/EIA-455-107 |
≤ 0.3dB(PC/UPC/APC) | ≤ 0.3dB(PC/UPC) |
|
Return Loss(dB) TIA/EIA-455-107 |
≥45dB(PC/UPC) ≥55dB(APC) |
≥35dB(PC/UPC) |
| Exchangeability | ≤ 0.2dB | |
| Cable Assemblies | Pigtail/Simplex/Duplex/Fan-out Patchcord | |
| Operating Temperature (° C) | -10~ + 70 | |
| Storage Temperature (° C) | -40 ~ +85 | |
| Package | 1unit/bag | |
