【About Product】
XP6482 is designed and manufactured by Shenzhen UT-KING Technology Co.,Ltd, a next-generation Gigabit Passive Optical Network (GPON) terminal, ideal for Fiber to The Home solution. It’s an incredibly robust device allowing users to access high-speed internet connections via its XPON port and share it with a Gigabit Ethernet port. With the transmission rates of up to 2.488Gbps, one GPON port and one Gigabit Ethernet port, It provides high-performance forwarding capabilities to ensure smooth VoIP, HD video streaming experiences,and WIFI(2.4G & 5.8G).
|
Model
|
Configuration
|
Fiber interface
|
||||
|
PON
|
LAN
|
Telephone
|
Wifi
|
CATV
|
||
|
XP6482
|
1
|
4
|
1
|
2
|
/
|
SC UPC/APC
|
|
Remarks
|
Power plug:EU,AU,AM,UK etc
|
|||||
|
Noted: with English manual
|
||||||
|
Optional: 4GE+1TEL Wifi 2.4G&5G
|
||||||
|
GPON Standards
|
ITU-T G.984.X
|
|
Chipset
|
ZX279128+ MTK 7603 + MTK7612
|
|
|
1* SC/UPC PON Port

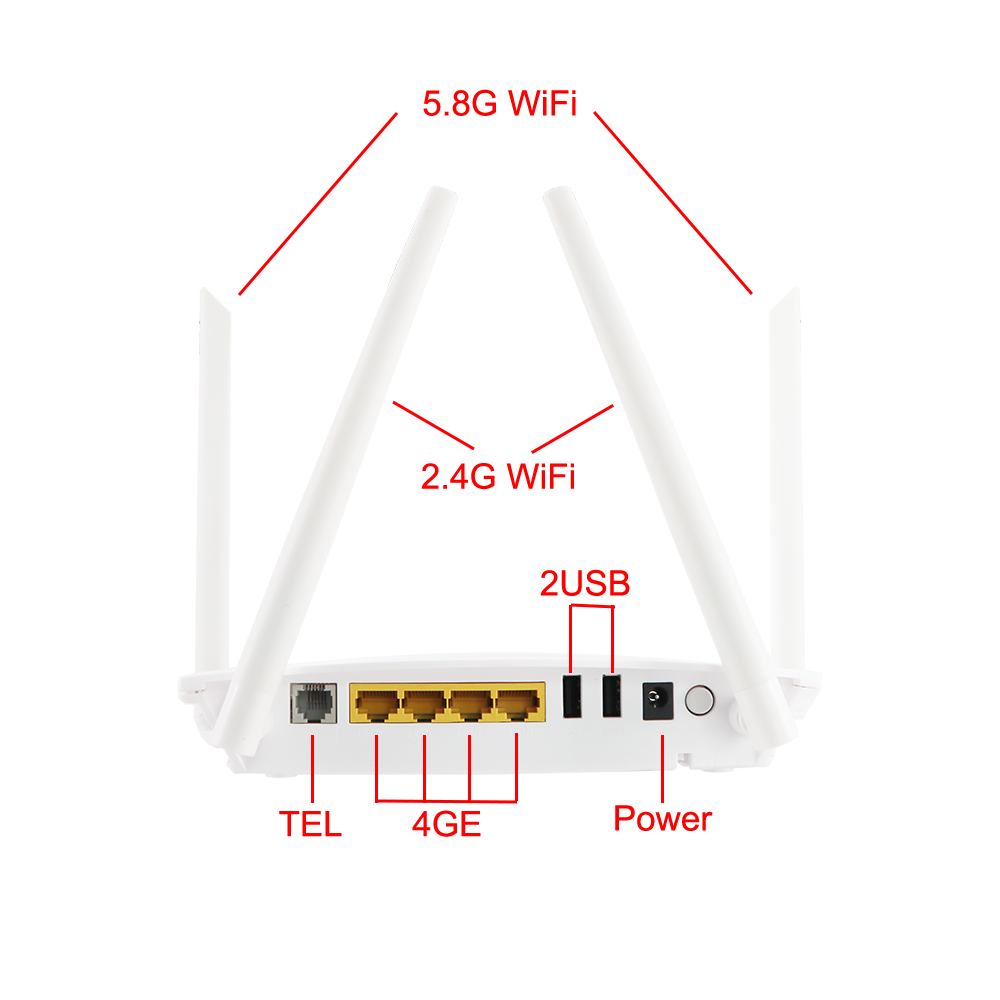

4 *10/100/1000Mbps RJ45 Ports 1 *POTS Port 1 *USB WIFI (2.4G & 5.8G) |
|
Data Rates & Wavelength
|
Upstream:1.244Gbps, 1310nm
Downstream:2.488Gbps, 1490nm |
|
Distance
|
0~ 20Km Max
|
|
External Power Supply
|
DC 12V/1A
|
|

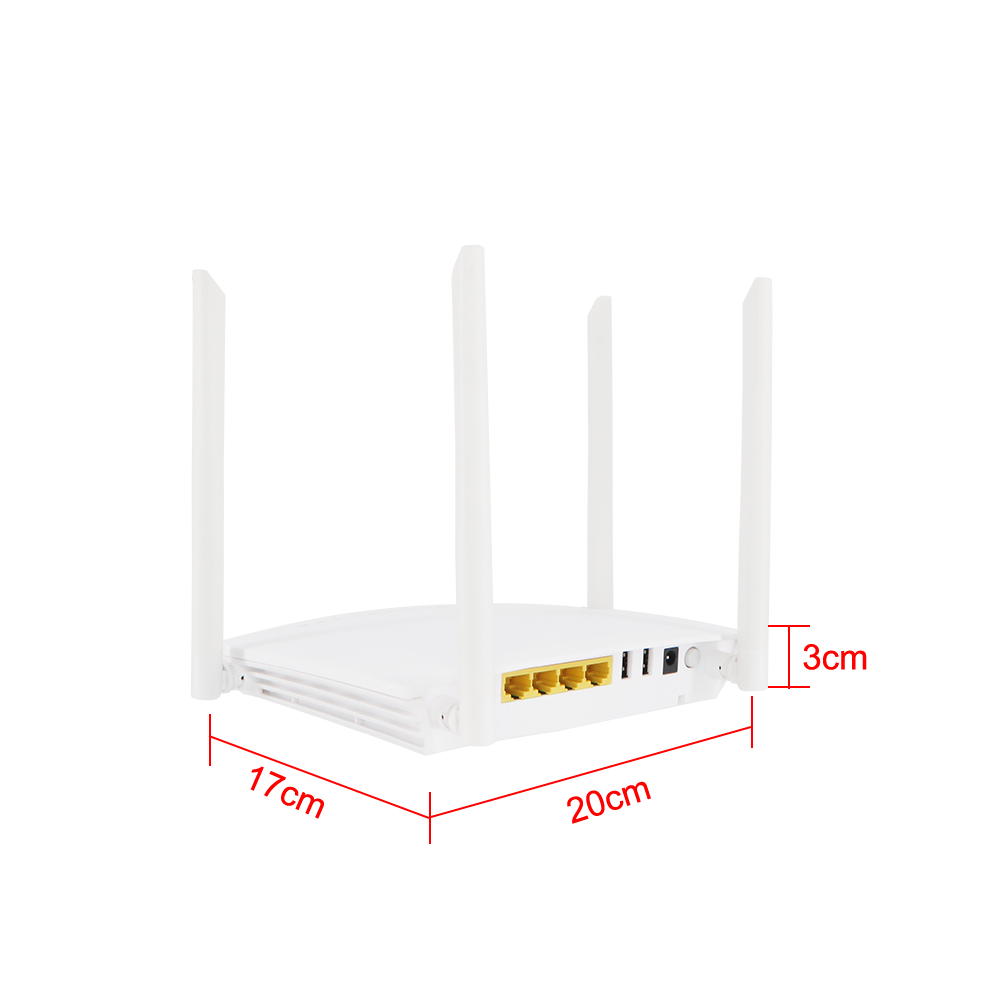

Dimensions (Length * Width * Height)
|
205mm×150mm×35mm
|
|
Weight (Full-Loaded)
|
≤0.6kg
|
|
Environmental Requirements
|
Working temperature: 0°C～40°C
Storage temperature: -40°C～70°C Relative humidity: 10%～90%, non-condensing |
|
Model
|
Configuration
|
Fiber interface
|
||||
|
PON
|
LAN
|
Telephone
|
Wifi
|
CATV
|
||
|
XP6482
|
1
|
4
|
1
|
2
|
/
|
SC UPC/APC
|
|
Remarks
|
Power plug:EU,AU,AM,UK etc
|
|||||
|
Noted: with English manual
|
||||||
|
Optional: 4GE+1TEL Wifi 2.4G&5G
|
||||||
|
GPON Standards
|
ITU-T G.984.X
|
|
Chipset
|
ZX279128+ MTK 7603 + MTK7612
|
|
|
1* SC/UPC PON Port
4 *10/100/1000Mbps RJ45 Ports 1 *POTS Port 1 *USB WIFI (2.4G & 5.8G) |
|
Data Rates & Wavelength
|
Upstream:1.244Gbps, 1310nm
Downstream:2.488Gbps, 1490nm |
|
Distance
|
0~ 20Km Max
|
|
External Power Supply
|
DC 12V/1A
|
|
Dimensions (Length * Width * Height)
|
205mm×150mm×35mm
|
|
Weight (Full-Loaded)
|
≤0.6kg
|
|
Environmental Requirements
|
Working temperature: 0°C～40°C
Storage temperature: -40°C～70°C Relative humidity: 10%～90%, non-condensing |
