【About Product】

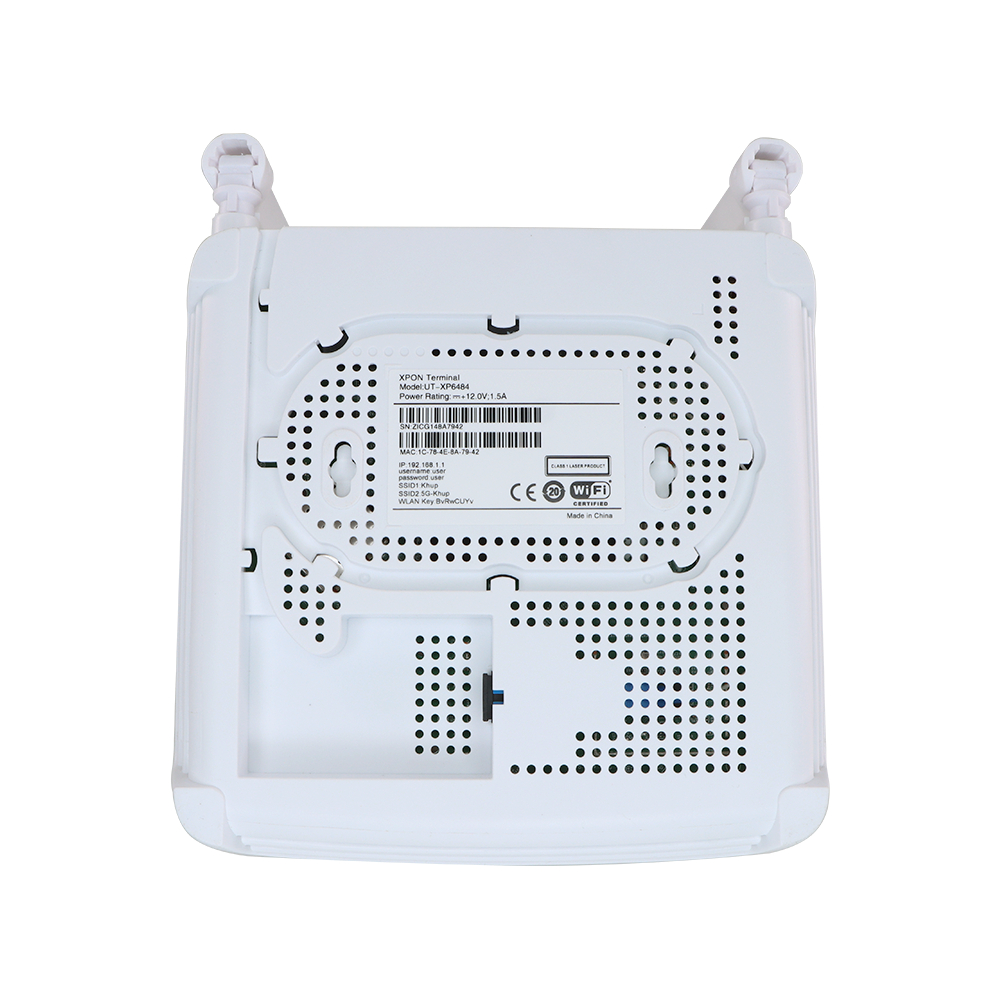

The UT-XP6484 is a high-performance ONU (Optical Network Unit) designed by UT-King Tec, tailored for seamless integration into fiber-optic networks. It features four Gigabit Ethernet (GE) ports, enabling robust connectivity for multiple devices, making it ideal for home and small to medium-sized business environments，Compatible with some locked hw OLT. Equipped with dual-band WiFi capabilities, the UT-XP6484 supports both 2.4GHz and 5.8GHz frequency bands, ensuring high-speed wireless connectivity with minimal interference. This feature allows users to enjoy faster internet speeds and improved performance for bandwidth-intensive applications such as streaming, online gaming, and video conferencing. Whether for home users or businesses, it represents a powerful and versatile choice for fiber-optic network deployment.
|
Model |
Configuration
|
Fiber interface
|
||||
|
PON
|
LAN
|
Telephone
|
atenna
|
CATV
|
||
|
XP6484
|
xpon
|
4GE
|
/
|
2
|
/
|
SC UPC/APC
|
|
Remarks
|
Power plug:EU,AU,AM,UK etc
|
|||||
|
Noted: with English manual
|
||||||
|
Optional: 4GE+2.4G&5.8GWIFI
|
||||||
|
Technical item
|
Details
|
|
PON Interface |
1 G/EPON port(EPON PX20+ and GPON Class B+)
|
|
Receiving sensitivity: ≤-27dBm
|
|
|
Transmitting optical power: 0~+4dBm
|
|
|
Transmission distance: 20KM
|
|
|
Wavelength
|
Tx: 1310nm, Rx: 1490nm
|
|
Optical Interface
|
SC/APC Connector
|
|
LAN Interface
|
4 x 10/100/1000Mbpsauto adaptive Ethernet interfaces. Full/Half, RJ45 connector
|
|
CATV Interface |
RF, optical power : +2~-18dBm
|
|
Optical reflection loss: ≥45dB
|
|
|
Optical receiving wavelength: 1550±10nm
|
|
|
RF frequency range: 47~1000MHz, RF output impedance: 75Ω
|
|
|
RF output level: 78dBuV
|
|
|
AGC range: 0~-15dBm
|
|
|
MER: ≥32dB@-15dBm
|
|
|
Wireless |
Compliant with IEEE802.11b/g/n,
|
|
Operating frequency: 2.400-2.4835GHz
|
|
|
support MIMO, rate up to 300Mbps,
|
|
|
2T2R,2 external antenna 5dBi,
|
|
|
Support: Multiple SSID
|
|
|
Channel: Auto
|
|
|
Modulation type: DSSS, CCK and OFDM
|
|
|
Encoding scheme: BPSK, QPSK, 16QAM and 64QAM
|
|
|
LED
|
13, For Status of POWER, LOS, PON, SYS, LAN1~LAN4 ,WIFI, WPS,
Internet, Worn, Normal(CATV) |
|
Push-Button
|
3,For Function of Reset, WLAN, WPS
|
|
Operating Condition
|
Temperature: 0℃~+50℃
|
|
Humidity: 10%~90%(non-condensing)
|
|
|
Storing Condition
|
Temperature: -30℃~+60℃
|
|
Humidity: 10%~90%(non-condensing)
|
|
|
Power Supply
|
DC 12V/1A
|
|
Power Consumption
|
≤6W
|
|
Dimension
|
190mm×170mm×190mm(L×W×H)
|
|
Net Weight
|
0.5Kg
|
