【About Product】

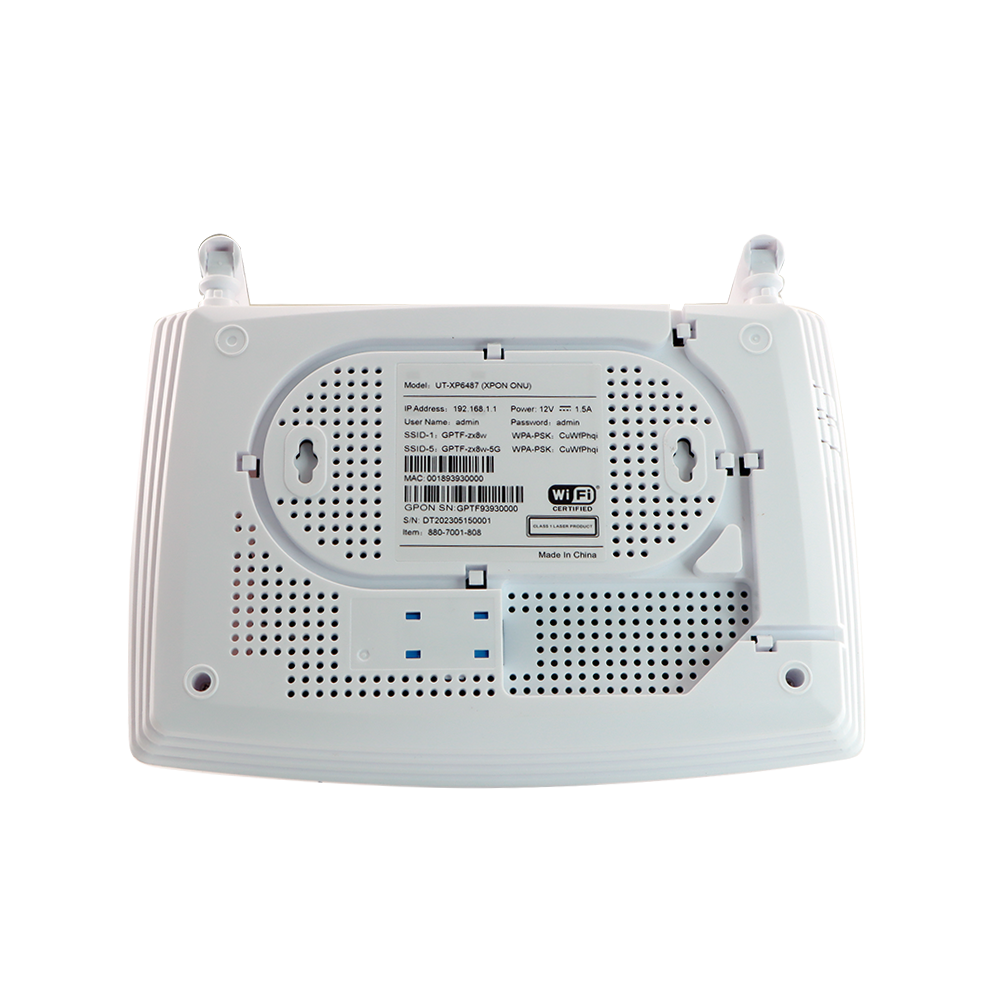

XPON ONT/HGU(XP6487) devices are designed for fulfilling FTTH and triple play service demand of fixed network operators or cable operators. These boxes are based on the mature Gigabit GPON technology, which have high ratio of performance to price, and the technology of 802.11b/g/n/AC WiFi (2T2R), Layer 2/3 and high quality as well. They are highly reliable and easy to maintain, with guaranteed QoS for different service. And they are fully compliant with technical regulations such as ITU-TG.984.x and technical requirement of XPON Equipment from China Telecom.
|
Model
|
Configuration
|
Fiber interface
|
||||
|
PON
|
LAN
|
Telephone
|
Wifi
|
POTS
|
||
|
XP6487
|
1
|
1GE+3FE
|
/
|
2Antenna
|
1
|
SC APC
|
|
Remarks
|
Power plug:EU,AU,AM,UK etc
|
|||||
|
Noted: with English manual
|
||||||
|
Optional: 1GE+3FE+CATV+WIFI2.4G&5.8G
|
||||||
|
Chipsets
|
ZTE,ZAX279128
|
|
Optical interface
|
1 XPON interface, SC single-mode/single-fiber,
Downstream rate 2.5Gbps, Upstream rate 1.25Gbps |
|
Optical Wavelength
|
Tx 1310nm, Rx 1490nm
|
|
Optical interface
|
SC/APC
|
|
RX sensitivity
|
< -27dBm @ 1490nm
|
|
WLAN
|
Compliant with IEEE802.11b/g/n, 300Mbps,
2T2R two external antenna |
|
WLAN throughput
|
100Mbps @ 40users, 1518bytes, no-encryption
107Mbps @ 40users, 512bytes, encryption |
|
LAN interface
|
1*10/100/1000Mbps
3*10/100Mbps Auto adaptive Ethernet interfaces, Full/Half Duplex, RJ45 connectors |
|
CATV interface
|
RF
|
|
DC power supply
|
DC 12V/1A, external AC-DC power adaptor
|
|
Button
|
RST, Power, WiFi, WPS, Pair
|
|
Power consumption
|
≤ 10W
|
|
Operating condition
|
Operating temp: -5 ~ +55℃
Operating humidity: 10~90% (non-condensed) |
|
Storing condition
|
Storing temp: -40 ~ +85℃
Storing humidity:10~90%(non-condensed) |
