Main Chip
|
MT7981B+MT7976+MT7531
|
|
High-performance enterprise-level chip
|
|
Frequency
|
ARM dual-core 1.3GHz
|
|
Memory
|
512MB
|
|
Flash
|
128MB
|
|
Wireless Technology
|
- 2.4G WiFi 2*2 802.11b/g/n/ax (theoretical maximum speed up to 574Mbps)
|
|
- 5.8G WiFi 3*3 802.11a/n/ac/ax (theoretical maximum speed up to 2402Mbps)
|
|
- 1024QAM high-speed access rate, OFDMA high-density user access
|
|
- OFDMA/MU-MIMO uplink/downlink
|
|
- BSS Color spatial reuse
|
|
- Space-time block code (STBC), low-density parity check (LDPC), beamforming TX/RX for uplink and downlink
|
|
Power-saving features: single antenna standby technology, dynamic MIMO power-saving technology, enhanced automatic power-saving
transmission technology, packet-by-packet power control technology, etc.
|
|

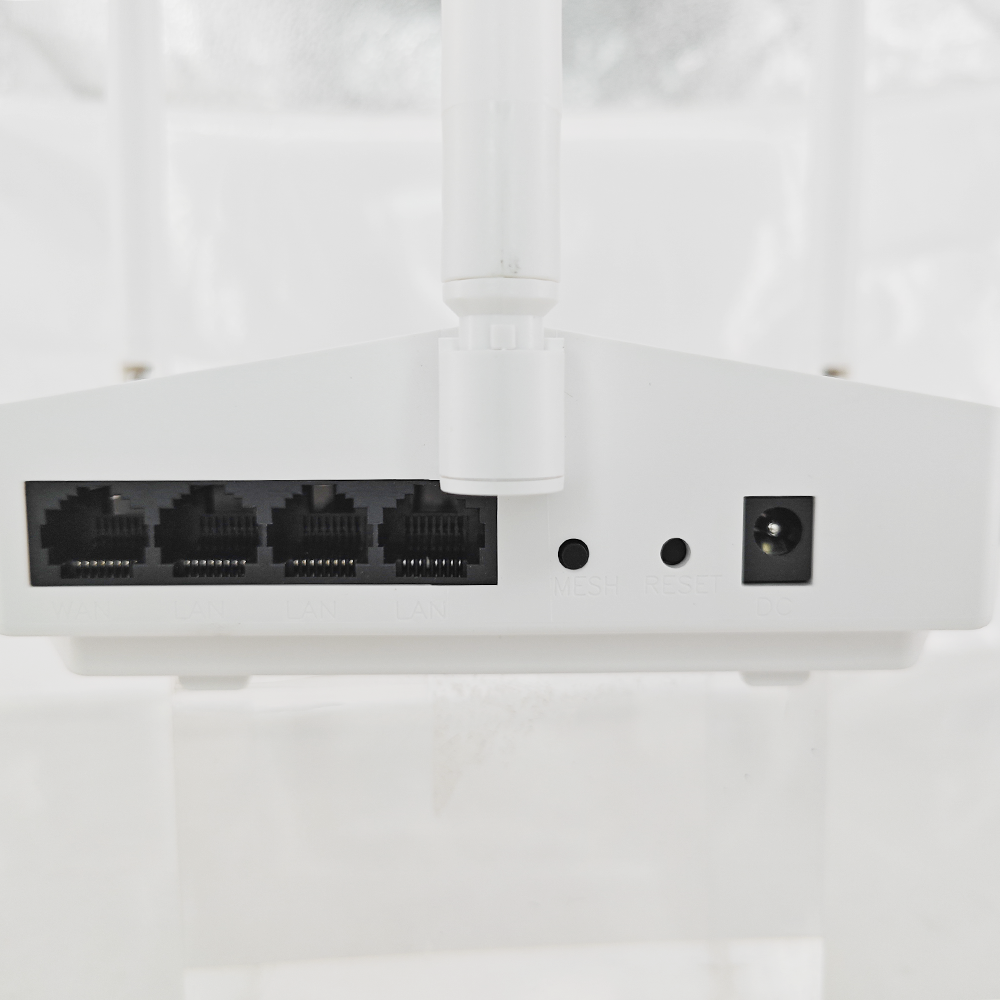

Device Interfaces
|
- WAN*1/LAN*3 10/100/1000Mbps adaptive
|
|
- DC power interface compatible with power plug with outer diameter of 5.5mm, inner diameter of 2.1mm, and length above 9.5mm
|
|
Buttons
|
- Reset button for factory reset (long press for 6 seconds to reset)
|
|
- WPS button for easy password-free connection
|
|
Indicators
|
Status indicators
|
|

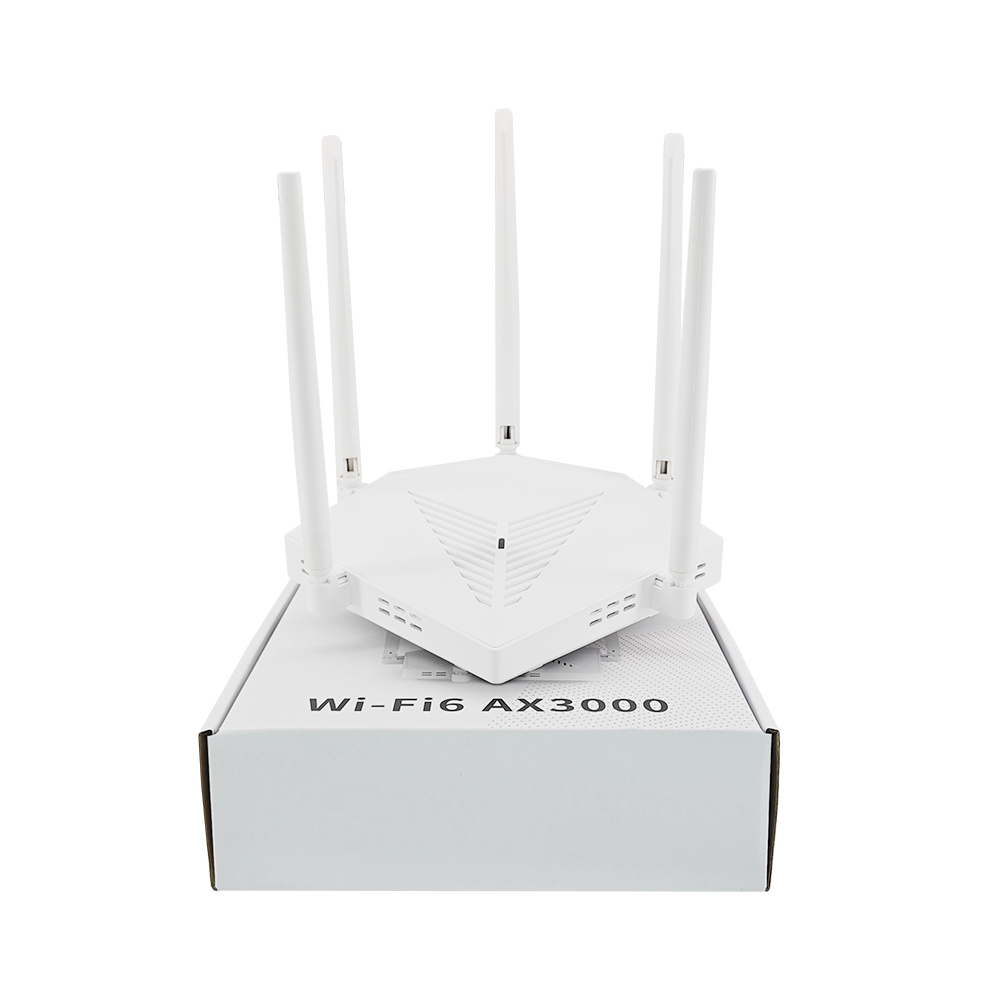

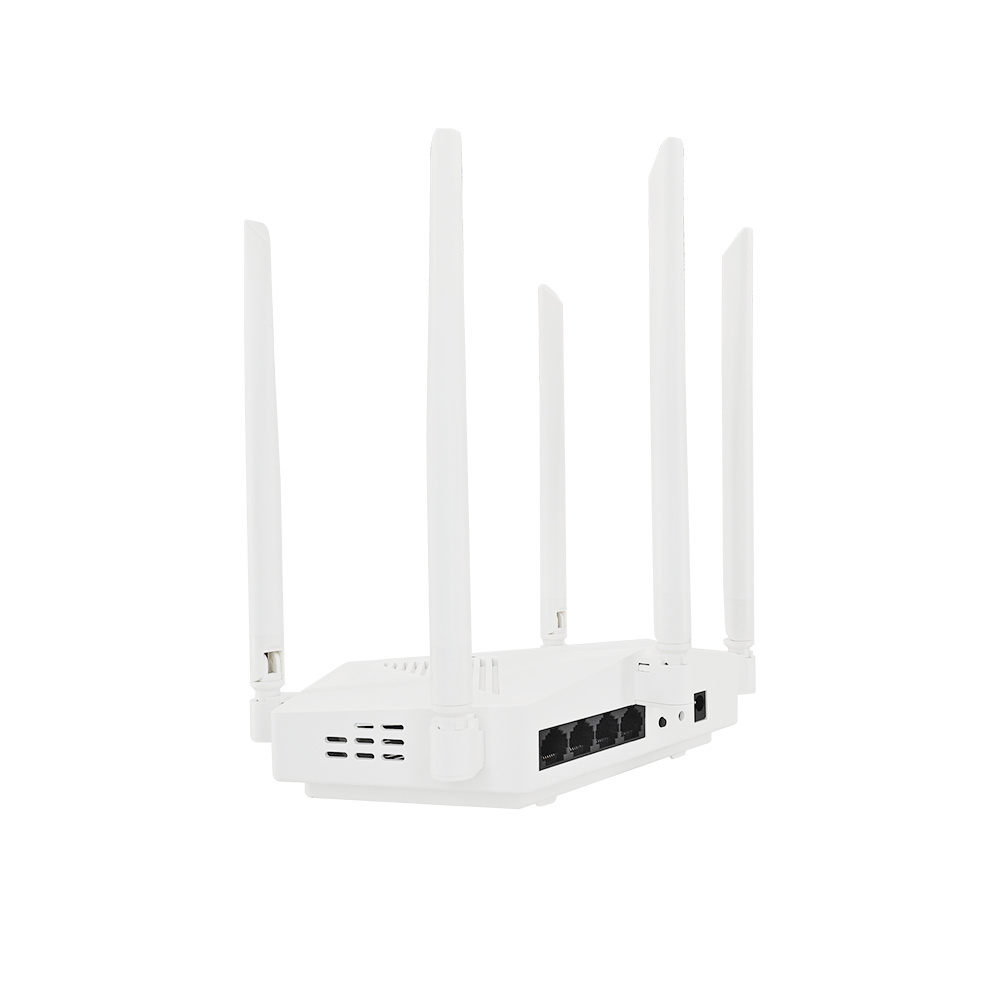

Antennas
|
- External 2.4G 5dBi rubber rod antennas * 2
|
|
- External 5G 5dBi rubber rod antennas * 4
|
|
Power
|
DC 12V/1A, positive outer and negative inner
|
|
Operating/Storage Temperature
|
-10℃～45℃/-20℃～70℃
|
|
Operating/Storage Humidity
|
10% to 90% (non-condensing) / 5% to 90% (non-condensing)
|
|
Dimensions
|
208.6*129.5*40.6mm(excluding antennas)
|
|
Weight
|
Approximately 680g
|
|
|
|
|
|
|
Frequency Range
|
2.4G：2.4~2.4835GHz
|
|
5G: UNII-1: 5.15~5.35GHz
|
|
UNII-2: 5.47~5.725GHz
|
|
UNII-3: 5.725~5.825GHz
|
|
Channel
|
2.4G: 1、2、3、4、5、6、7、8、9、10、11、12、13
|
|
5G: 36、40、44、48、52、60、64、149、153、157、161、165
|
|
Modulation
|
802.11b: DSSS (DQPSK, DBPSK, CCK)
|
|
802.11g: OFDM (BPSK, QPSK,16-QAM)
|
|
802.11n: OFDM (BPSK, QPSK,16-QAM, 64-QAM)
|
|
802.11ac: OFDM (BPSK, QPSK,64-QAM, 256-QAM)
|
|
802.11ax: OFDMA (BPSK,256-QAM, 1024-QAM)
|
|
Transmission Rate
|
11b up 11Mbps，11g up 54Mbps，11n up 300Mbps
|
|
11ac up 864.7Mbps，11ax 2.4G up 573.5Mbps，11ax 5G up 2402Mbps
|
|
Receiver
|
2.4G:
|
|
Transmit Power
|
11b: 20dBm±1.5dBm@11Mbps
|
|
11g: 20dBm±1.5dBm@54Mbps
|
|
11n(20/40MHz): 20dBm±1.5dBm@MCS7
|
|
11ac(40/80MHz): 20dBm±1.5dBm@MCS9
|
|
11ax(20/40/80/160MHz) : 20dBm±1.5dBm@MCS11
|
|
|
|
|
|
|
Working Mode
|
Routing mode/Bridge mode
|
|
Number of
|
128 Peoples
|
|
connected users
|
|
Management mode
|
English web remote management/support for TR069 remote management
|
|
Status
|
InternetRouterWiFiPrimary Network User
|
|
Guest UserDHCP List
|
|
Network
|
Ethernet：Network (RoutingBridge)
|
|
Ethernet Setting (Dynamic IPStatic IPPPPoE)
|
|
Ethernet Status
|
|
LAN Setup:
|
|
Lan: IP AddressSubnet MaskDHCP settingDNS
|
|
Lease time
|
|
Guest Network Address Pool
|
|
Wireless
|
-WiFi: Dual frequency in one2.4G&5G WPS switch
|
|
2.4G&5G: Status switchHide SSIDSSIDSecurity
|
|
Encryption ModePassword
|
|
Advanced Settings: ProtocolChannel Bandwidth
|
|
ChannelTx power
|
|
-Black and White List: Switch
|
|
Mode switch (BlacklistWhitelist) Blacklist
|
|
-WPS: 2.4G&5G SwitchPBC
|
|
-Mesh: SwitchRole (AutomaticMain routeSatellite)
|
|
Add satelliteFast roaming
|
|
2.4G&5G Set signal strength threshold
|
|
-Relay mode: SwitchFrequency bandSSID(Scan)
|
|
SecurityPasswordStatus
|
|
-Advanced Configuration: Band StreeringWLAN QOS
|
|
WiFi5 Compatibility modeWiFi timed reboot
|
|
Network Advanced
|
IPV6DDNSIPTVGuest NetworkParental Control
|
|
VPN Client(PPTPL2TP)Hardware HNAT
|
|
Features
|
ALGPort ForwardingDMZ SettingsMAC Filtering
|
|
IP FilteringDDOSURL Control
|
|
Management
|
SNTPChange User InfoBackup & Upgrade
|
|
Restart & ResetLED SwitchFlow ControlSystem Log
|
|
Setup Wizard
|
WiFi-Network Configuration-Summary
|
|
Mesh Topo
|
Overall network device topology(IPMACMedium)
|
