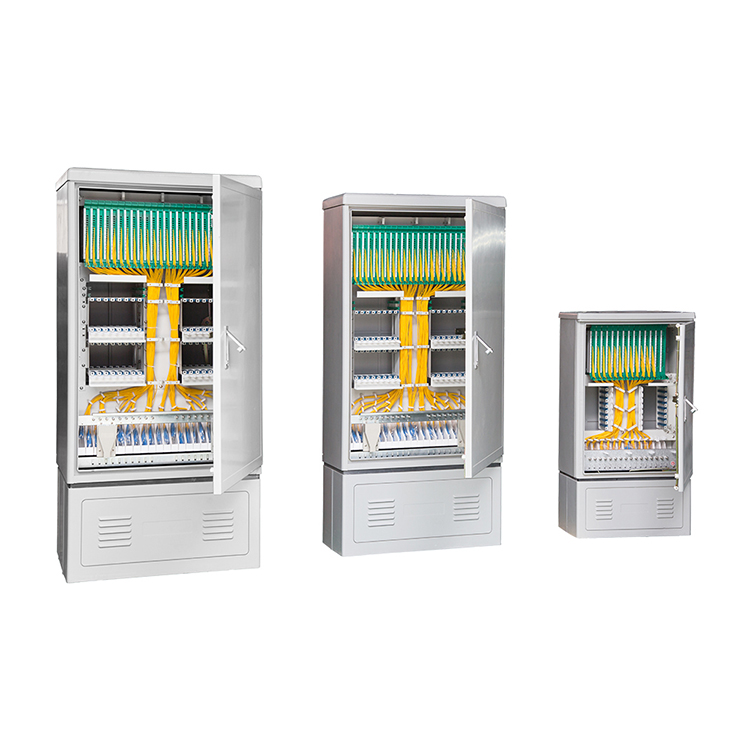

Fiber Optic Cabinet FOC-SMC Series

UT-King’s Fiber Optic Cabinet SMC series is widely applicable in FTTX access network.It provides splice,storage,termination,splitting,customer cable routing functions etc.,without cables patching,which effectively solves the problems resulted by traditional distribution dvices,less adaptors and patch cords,less loss rate and defect points,safer network,more capacity,convenient for cable management and upgrading,cost saving and promoting the development of optical fibers.

Main Features

  •  Less adaptors and patch cords,less defect points and loss rate,safer network.
  •  Offer an effective way for splitter management and capacity upgrading.
  •  Pigtails in distribution area with length of 2 meters,equipped with pigtails management unit,clear for identification.
  •  Add splitter splitting unit,to meet the demand of point-to-point,point-to-multiple points.
  •  Modular design,flexible for operation,and cost saving.
  •  With capacity of 144cores,288 cores and 576 cores.

CONTACT +

Parameter

Model UT-FOC-SMC-A UT-FOC-SMC-B UT-FOC-SMC-C
Dimension 1030x550x300mm 1540*760*360mm 1540*760*620mm
Max capacity 144/128 cores 288/256 cores 576/512 cores
Material SMC
Net Weight 75kg 130kg 170kg
Carton Dimension 1100*600*380mm 1650*820*450mm 1650*850*700mm
Groos Weight 80kg 150kg 200kg
