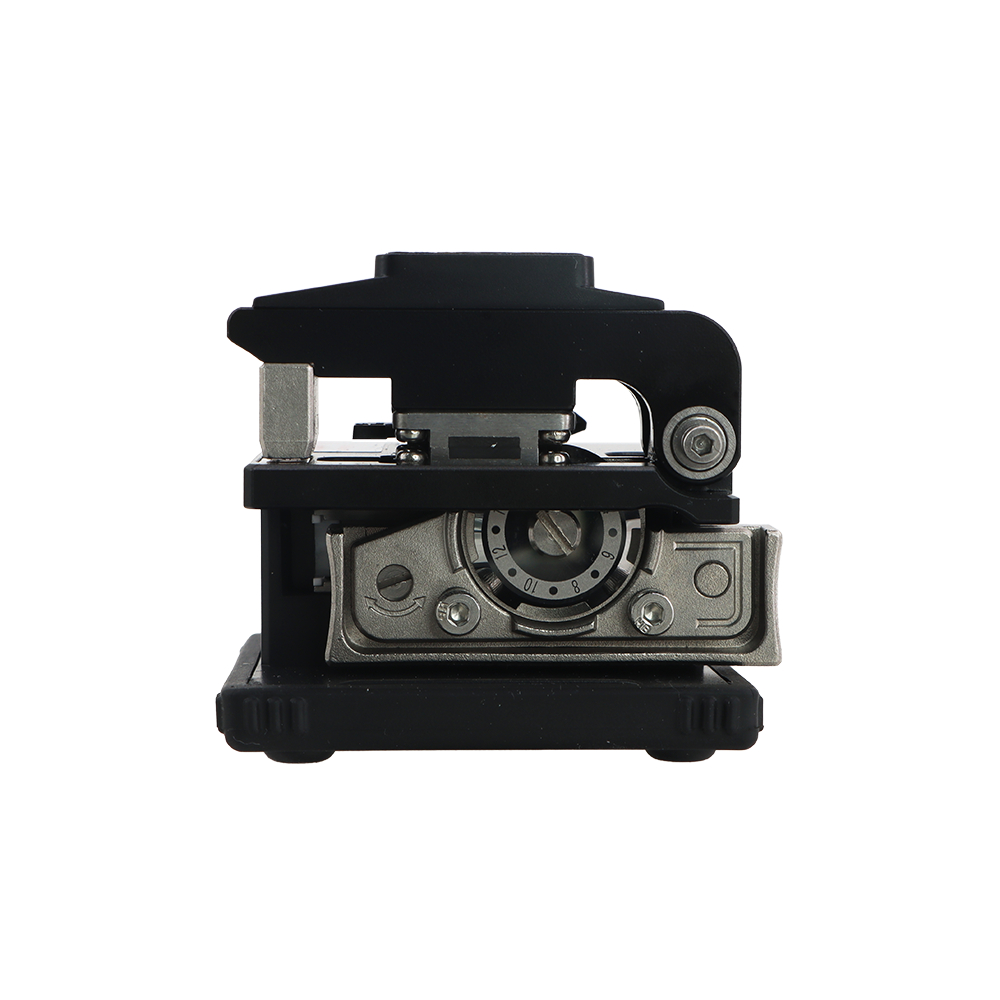

Fiber Optic Cleaver,FS-01

UT-king's FS-01 high precision cleaver is designed for field use alongside the Sumitomo splicing units. By using a rotating blade for multiple scoring positions enables a blade life of 48,000 cleaves with a cleave angle better than 0.5 degrees. The unit is constructed to be robust and field serviceable and has options such as tripod mount to enable secure platform mounting. The FC-6S is the latest cleaver . Integral to the unit is a cleave length scale which helps facilitate exact lengths during cleaving.

[Products Features]
* This cleaver offers high accuracy with up to 48000 cutting times. It operates flawlessly in temperatures ranging from -40 to 80°C.
* The stainless steel slide makes the cleaver easy to operate, providing and safe operation for improved efficiency.
*With a 3-in-1 fixture, the cleaver can cut bare fiber, pigtail, and skin cable. It has its own
scale for easy length adjustment.
*The fiber optic cleaver has a flat cutting face, ensuring accurate angle and minimal loss.
*The cleaver is equipped with all-round protection to minimize damage to the cutting knife and ensure long-lasting performance.
CONTACT +

Parameter

FTTH Cleaver High-Precision Rubber base non-slip Optical Fiber Cutter 48000 times Bare Fiber Tool for Network use Cutting Knife
Specification
Item Type: Fiber Optic Cleaver
Material: Stainless steel, aluminum alloy
Cutting Angle: ≤0.5°
Applicable Bare Fiber Diameter: 125μm
Fiber Cutting Length: 9-16mm (0.25mm), 10-16mm (0.9mm).
Cutting Times: 48000 times
Suitable Operating Temperature: -40-80°C

Package List
1 x Fiber Optic Cleaver
1 x Instruction Manual
1 x Accessory Box
1 x Storage Box
Item
Value
Model Number
FTTH FIBER CLEAVER
Type
Testers &Tools
Place of Origin
Guangdong
Brand Name
UT-KING
Use
FTTH
Warranty Time
1 YEARS
Network
None
model
Fiber Cleaver
Outercoat diameter
125um
Bare fiber diameter
0.25mm~0.9mm
Cleaving length
9~16mm(0.25) 10~16(0.9)
Blade Life
48000 times
Cleave angle capability:
<0.5°
Dimension
63mm(W)*76mm(D)*63mm(H)
Net Weight
430g
Name
fiber optic cutter
Applicatio
Fast Connect
