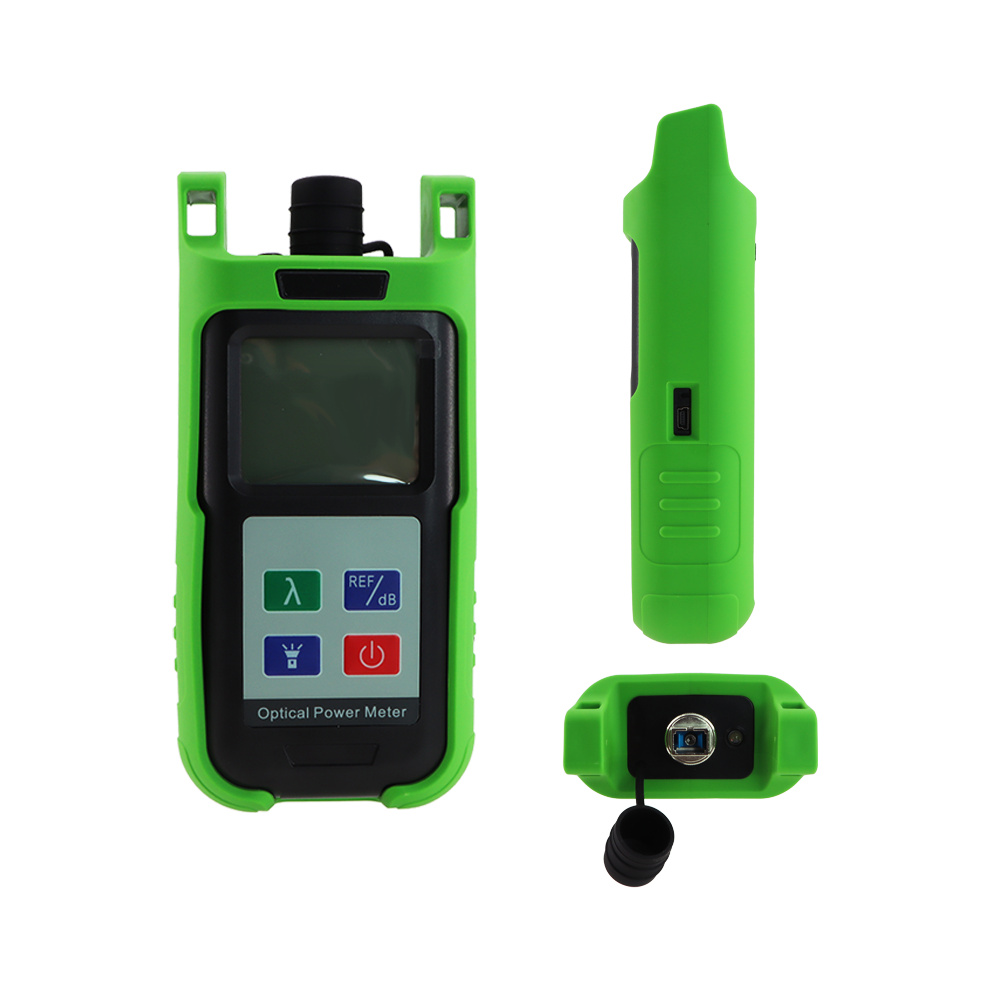

Optical Power Meter KPM-35-A

Optical power meter is a compact and an easy-to-use testing instrument for optical fiber networks, which can be used for absolute optical power measurements as well as for relative loss measurements in optical fibers. It features ingenious appearance, wide range of power measurement, high accuracy and user self-calibration function with high performance-to-price ratio

Main Features

  •  User self calibration function
  •  Comfortable LCD display and optional backlight LCD display supports night operation
  •  Power measurements in dBm or mw and insertion loss in dB
  •  Low battery consumption, more than 240 hours continual operation time for three 1.5Valkaline batteries
  •  10 minutes Auto-off function can be activated or deactivated.
CONTACT +

Parameter

4 in 1 Optical Power Meter Visual Fault Locator 5Km Light Pen LED Lighting
OPM Network Fiber Optic Cable Tester Tools


【Key Words】
#Fiber optic power meter
#Network Cable Test
#Visual Fault Locator
#optical on-off detection




item
value
Model Number
KPM-35
Type
Fiber optic power meter
Place of Origin
China

Zhejiang
Brand Name
MINGXIN
Use
FTTH/FTTX
Warranty Time
1 YEAR
Network
TCP, Ip, wifi, 4g, 3G
Product name
Optical Power Meter Visual Fault Locator Network Cable Test
Wavelength(nm)
1310/1550
Measurement Range(dBm)
-70 ~ +6 dBm/ -50 ~ +26dBm
Resolution (dB)
0.01
Power Supply
Alkaline Battery(3 AAA 1.5V Batteries)
Operating Temperature
-10 ~ +60 °C
Storage Temperature
-25 ° C ~ +70 °C
