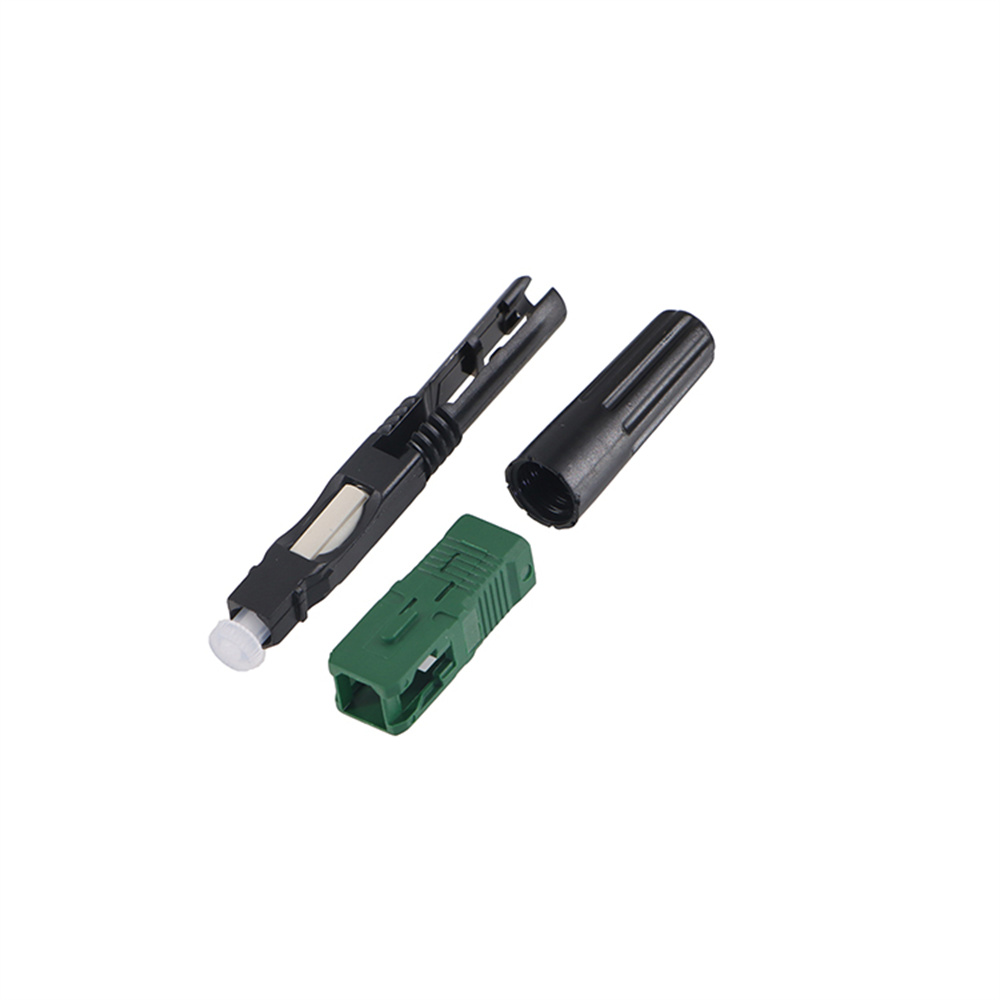

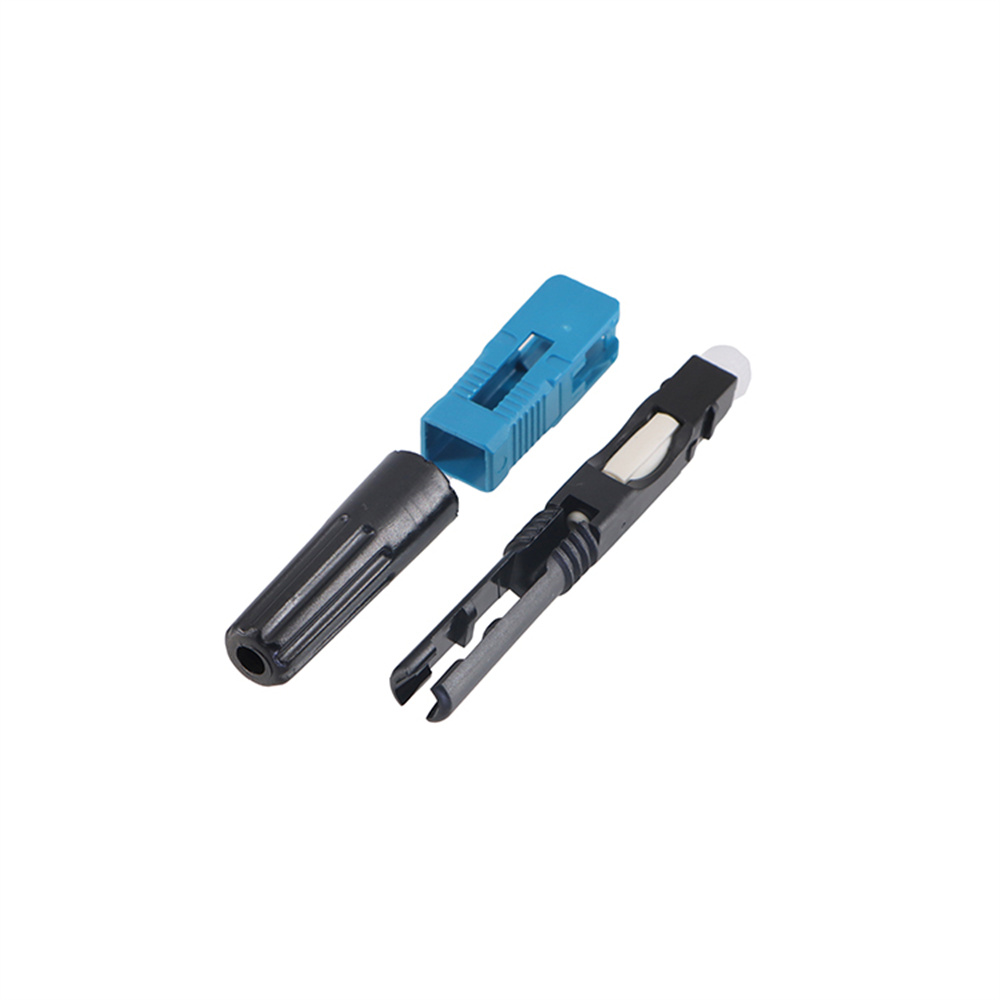

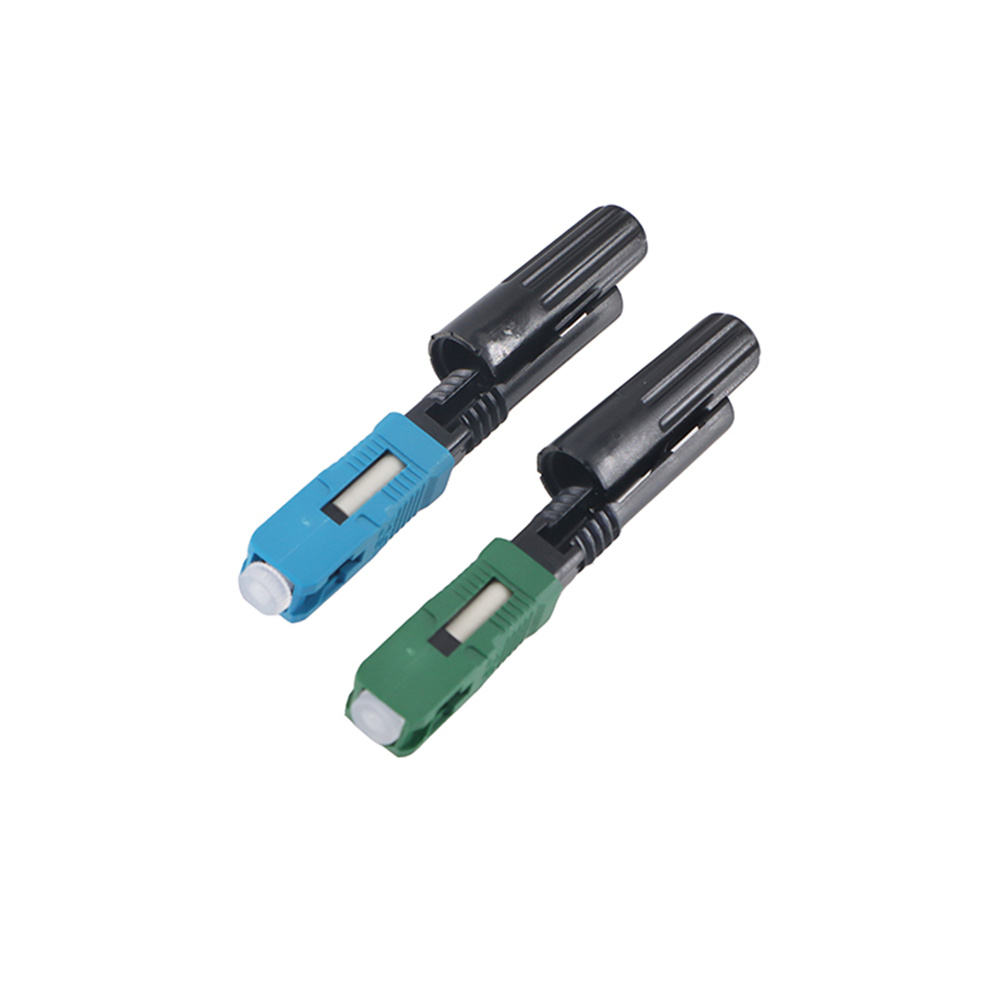

UT-SC5508, 55mm SC APC/UPC Fast Connector

UT-SC5508 fast connector using mechanical connection technique, can rapidly in field3mm and FRP into 8 word pigtail indoor cable (2mm*3mm) terminal in the standard SC typeconnector. The TLC connector has the advantages of simple operation, good tensileproperties, and can be repeatedly opened, without replacing any parts. Fast Connector is a revolutionary field installable optical fiber connector that requires no epoxy and no polishing. The unique design of the patented mechanical splice body incorporates a factory-mounted fiber stub and a pre-polished ceramic ferrule. Using this onsite assembly optical connector, it is possible to improve the flexibility of optical wiring design as well as reducing the time required for fiber termination. The Fast connector series are already a popular solution for optical wiring inside buildings and floors for LAN & CCTV applications and FTTH.

Main Features

Used to open the FTTH fiber terminal end.
In the box, cabinet, such as wiring into the box.
Off the back of the accidents such as fiber, maintenance.
LAN, wan, data and video transmission.
The construction of the fiber end user access and maintenance.
Optical fiber access of mobile base station.

CONTACT +

Parameter

SC Fibra Fast Connector Conector Rapido Single Mode Mini SC Fast Connector 3M 8802 SC APC Fast Connector

【Applications】

◉Used to open the FTTH fiber terminal end.
◉In the box, cabinet, such as wiring into the box.
◉Off the back of the accidents such as fiber, maintenance.
◉LAN, wan, data and video transmission.
◉The construction of the fiber end user access and maintenance.
◉Optical fiber access of mobile base station.

【Technical parameters】
1, fiber diameter: 250 m to 900 m
2, service life: 30 years 3M data of domestic products
3, the insertion loss (IL): 0.3dB (typical 0.1dB)
4, return loss: more than 40dB
5, the tensile strength: more than 454g

【Environmental parameters】
1, the operating temperature: -40 to 80 DEG C
2, thermal cycle: the change of IL is less than or equal to 0.3dB
3, vibration: the change of IL is less than or equal to 0.3dB
4, water: the change of IL is less than or equal to 0.3bB

3M 8802 SC Fibra Fiber Optic Fast Connector SC APC Conector Rapido Single Mode Mini SC Fast Connector 3M 8802 UPC Fast Connector
Model No	UT-SC5508
Connector Type	UPC/APC
Length	55mm
Applicable for	Drop cable.Indoor cable
Fiber mode	Single mode or Multi mode
Operation time	About 50s(no fiber cut)
Insertion Loss	≤0.2dB
Insertion Loss Typical value	0.2dB
Return Loss	≥50dB UPC ≥55dB APC
Fastening strength of naked fiber	≥5N
Tensile strength	≥50N
Reusable	≥10 times
Operating Temperature	-40~+85℃
