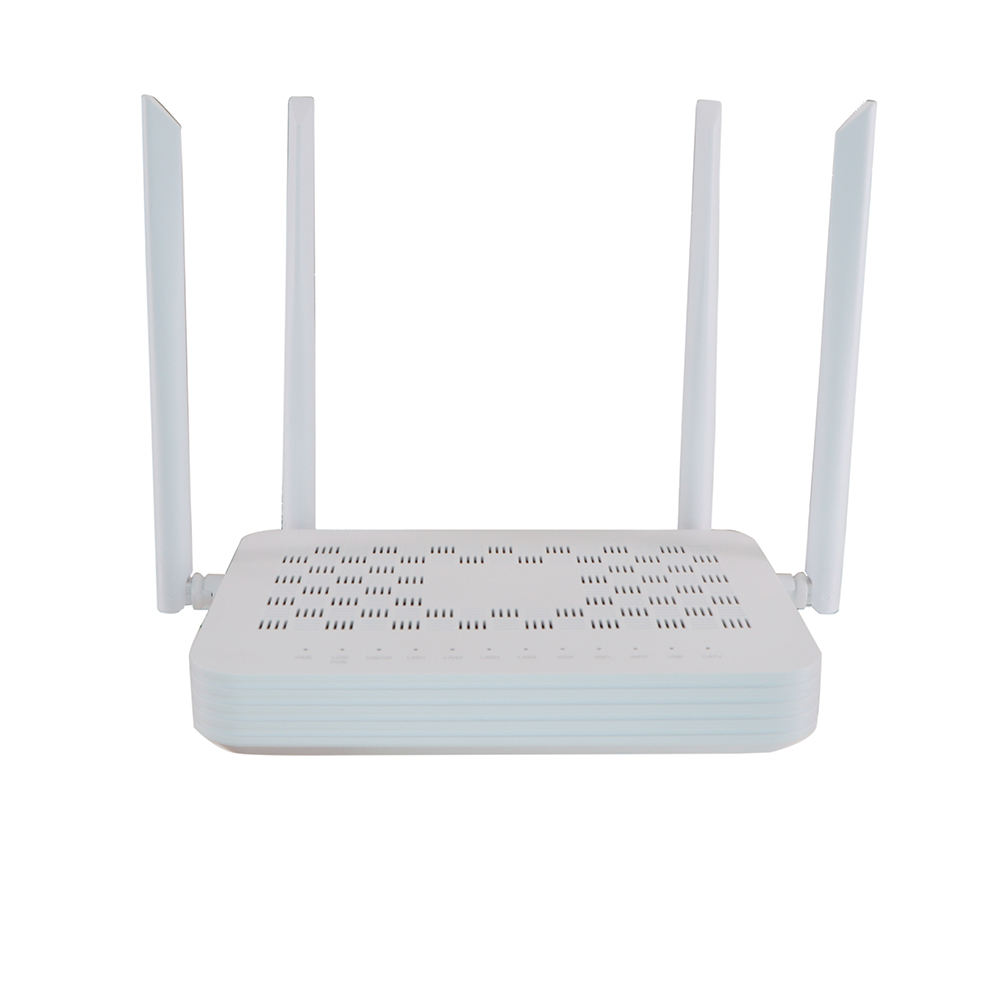

UT-GP4491T, AX3000 4GE 1VOIP Catv WIFI6 ONU

The UT-GP4491 is a GPON optical terminal access device (AX3000Mbps) that is highly integrated with dual-frequency Wi-Fi6. It is the end-product of optical fiber for operators. It supports ultra-bandwidth access through GPON upstream technology and provides users with basic WIFI functions, routing, and gigabit Ethernet functions. The upstream network ports of the UT-GP4491 are GPON ports. The downstream user ports include four GE electrical ports, one USB port,one VOIP port and AX3000 WiFi6 WLAN ports.

【Product Feature】
*Support GPON Mode(ITG.G.984.X)
*Support ONU auto-discovery/Link detection/remote upgrade of software
*WAN connections support Route and Bridge mode
*Route mode supports PPPoE/DHCP/ static IP
*Support WIFI Interface and multiple SSID
*Support QoS and DBA
*Support TR069 remote configuration and maintenance
*Specialized design for system breakdown prevention to maintain stable system


CONTACT +

Parameter

UT-King AX3000 4GE+1Pots Gateway Wifi6 AC Xpon Gpon Onu with 4 AntennaSupport OEM CATV ONU Wifi 6 Ont

Interface function
● 1 * GPON interface: SC/UPC/APC interface, GPON standard
● 4 * Ethernet interface: 10 MBPS / 100 MBPS, 1000 MBPS, RJ - 45, IEEE802.3-2005 standard
● 1 * VOIP interface: in accordance with G. 711 a/u, G. 729 a/b, G. 722 standard
● 1 * USB interface: standard USB 3.0 interface
● Dual-band
WIFI6 AX3000 (2 ×2 MIMO (2.4G&5G))

Model
Configuration

Fiber interface
PON
LAN
Telephone
Wifi
CATV
GP4442-V
1
4GE
1
4 Antenna
Support OEM
SC APC/UPC


Remarks
Power plug:EU,AU,AM,UK etc
Noted: with English manual
Optional: 4GE+1POTS+4 Antenna(5dbi) 2.4G&5G WIFI 6+1CATV
Technical item
Specification
PON Interface
1 GPON interface,Downstream rate 2.5Gbps,Upstream rate 1.25Gbps
LAN Interface
4 x 10/100/1000Mbps(GE)  auto adaptive Ethernet interfaces. Full/Half, RJ45 connector
CATV Interface
RF (Support OEM)
Chipsets
5VT
Operation Condition
Working temperature: -5-+55℃ working humidity:10-90%(non-condensation)
Storing Condition
Storage temperature: -30℃-+60℃ storage humidity: 10-90%(non-condensation)
Capability
Support NAT/PPPOE/DHCP/Static IP/Bridge WAN
Wavelength
TX: 1310nm, RX: 1490nm
DC power
12V DC input
Dimension
190mm*135mm*33mm(L*W*H)
