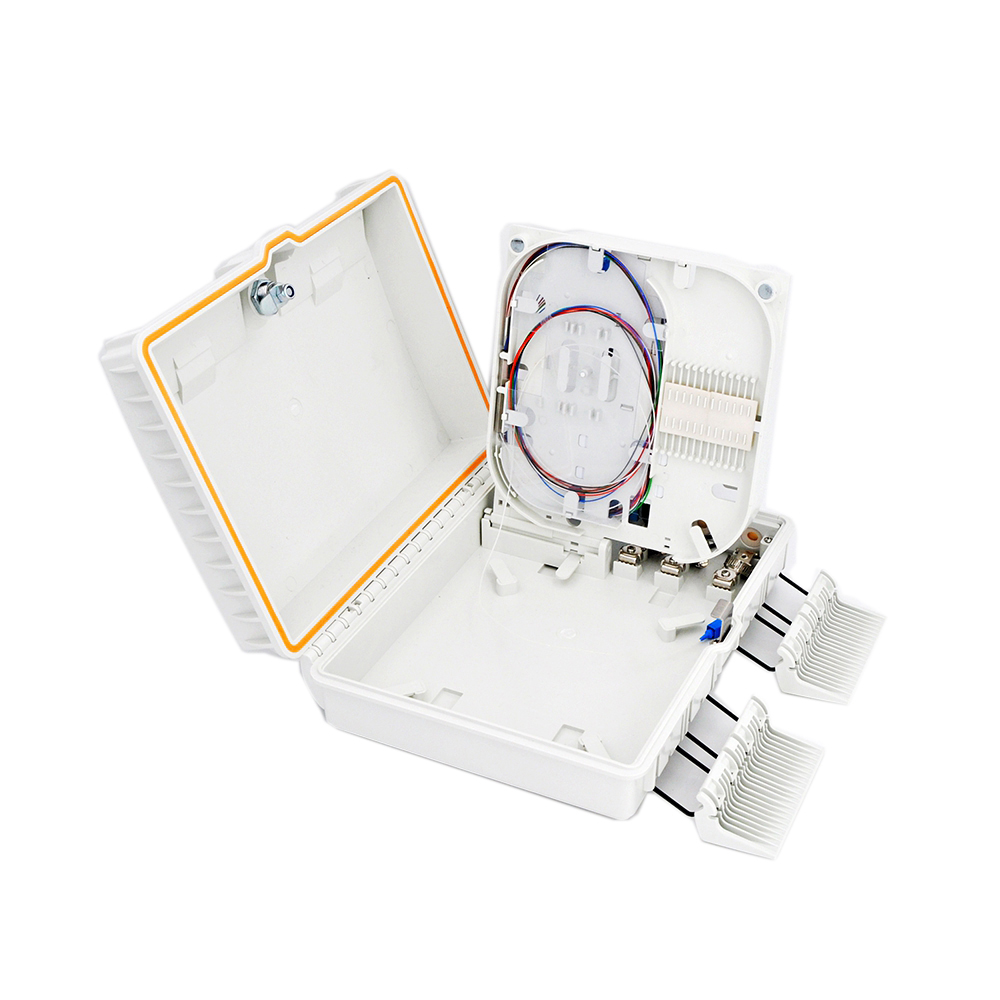

Fiber Distribution Box FDB316A

UT-King’s fiber distribution box (FDB) is used as a termination point for the feeder cable to connect with drop cable in FTTx communication network system. The fiber splicing, splitting, distribution can be done in this box, and meanwhile it provides solid protection and management for the FTTx network building.


Main Features

  •  Material: PC+ABS，wet-proof、water-proof、dust-proof、anti-aging, protection level up to IP65。
  •  Clamping for feeder cable and drop cable, fiber splicing, fixation, storage, distribution...etc all in one.
  •  Cable，pigtails，patch cords are running through own path without disturbing each other, cassette type SC adaptor installation, easy maintenance.
  •  Distribution panel can be flipped up, feeder cable can be placed in a cup-joint way, easy for maintenance and installation.
  •  Cabinet can be installed by the way of wall-mounted or poled-mounted, suitable for both indoor and outdoor uses.


CONTACT +

Parameter

Model UT-FDB316A
Dimension 352mm*260mm*110mm
Color White,Black or customized
Capacity of FOSC Bunchy:24 cores
Max ratio 1:16
Cable entry ports In 3 Out 16
Diameter of Cable Φ16mm
Assemmbling method pole, wall-mounting
Protection level IP65
Outter carton size 750*340*490
number of Packing 12 pcs/ctn
weight 24kg /ctn
