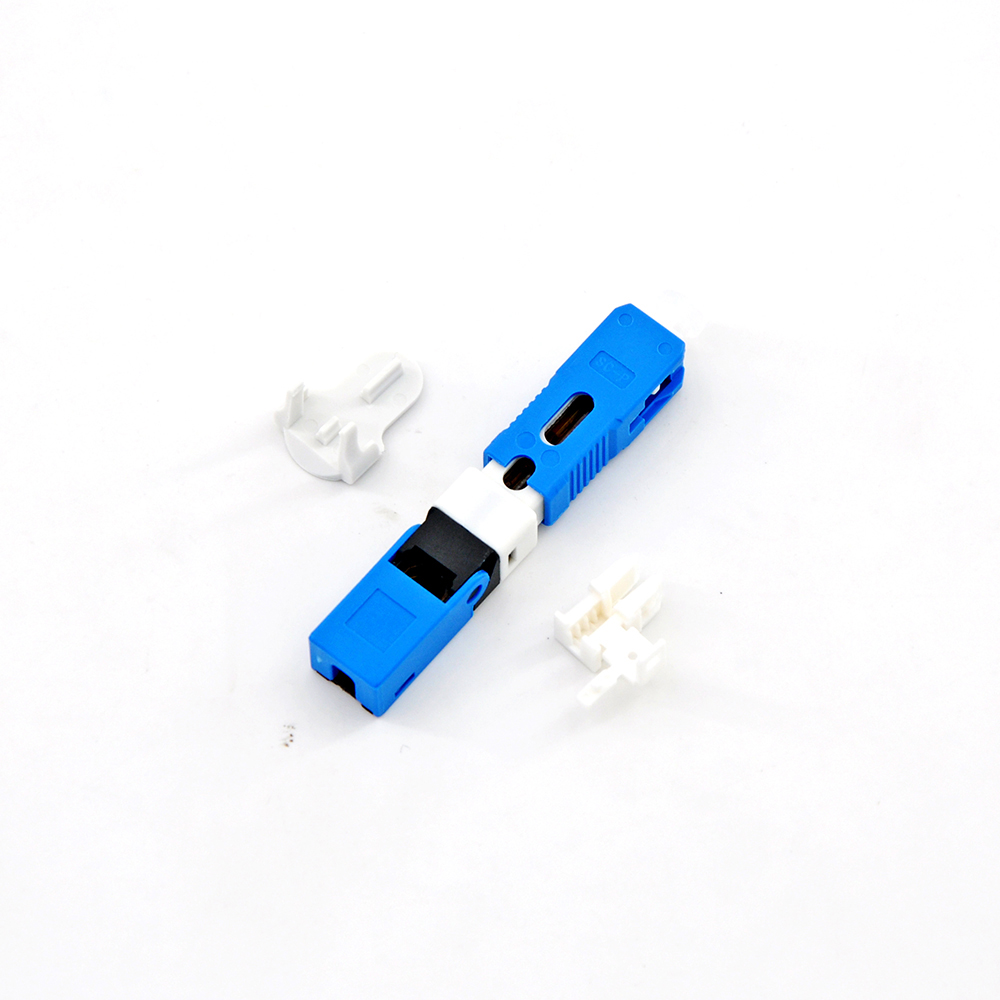

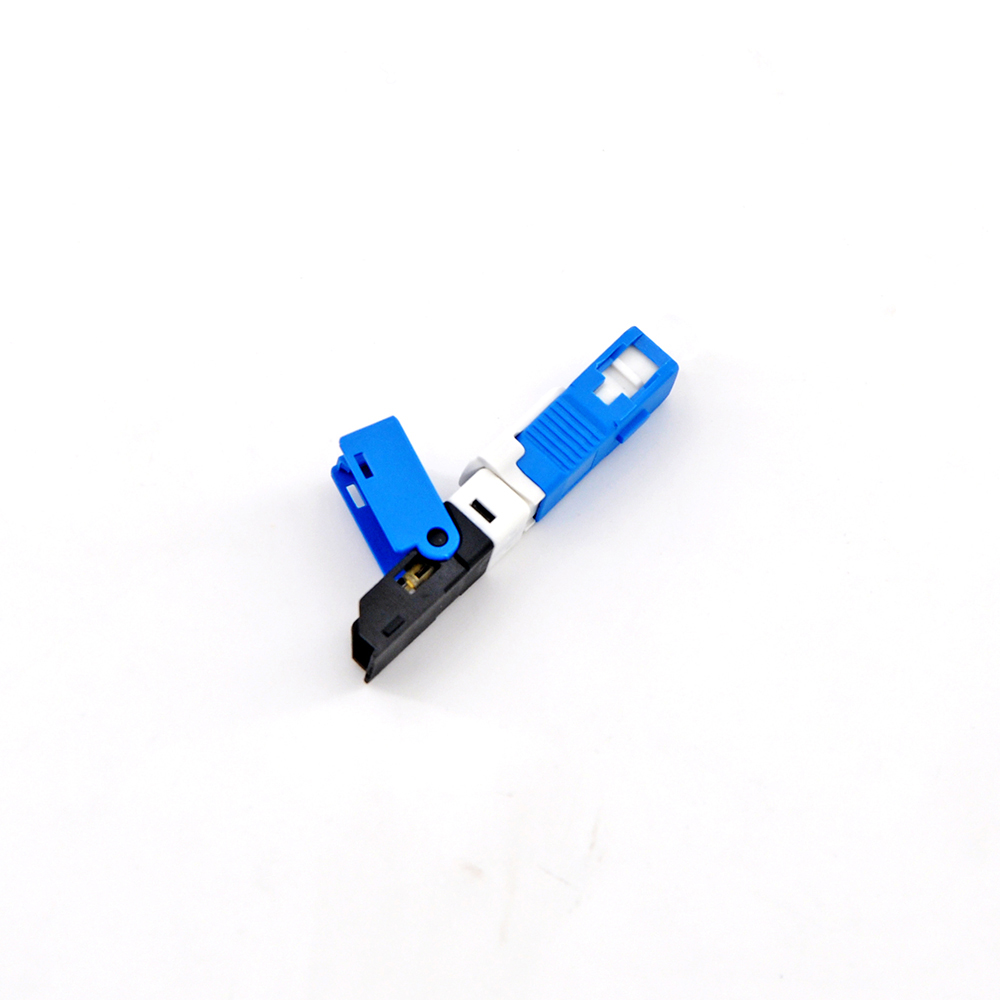

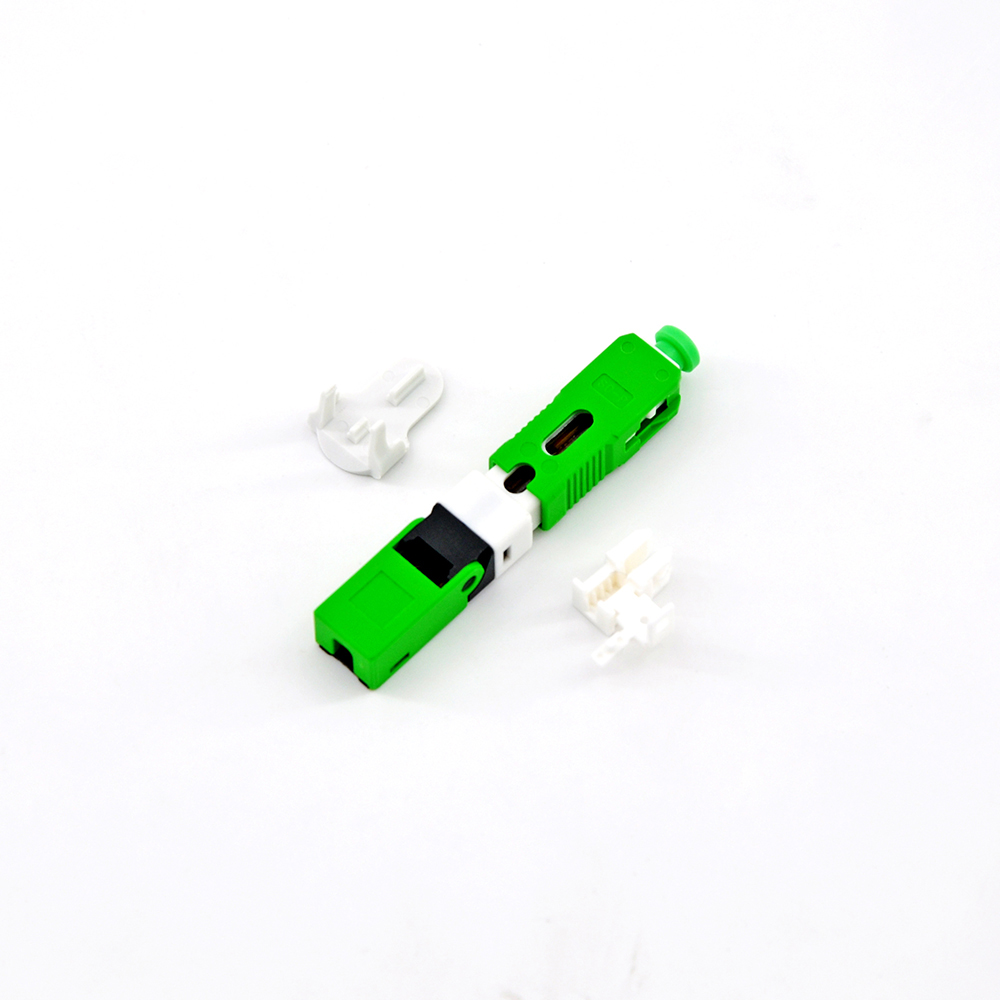

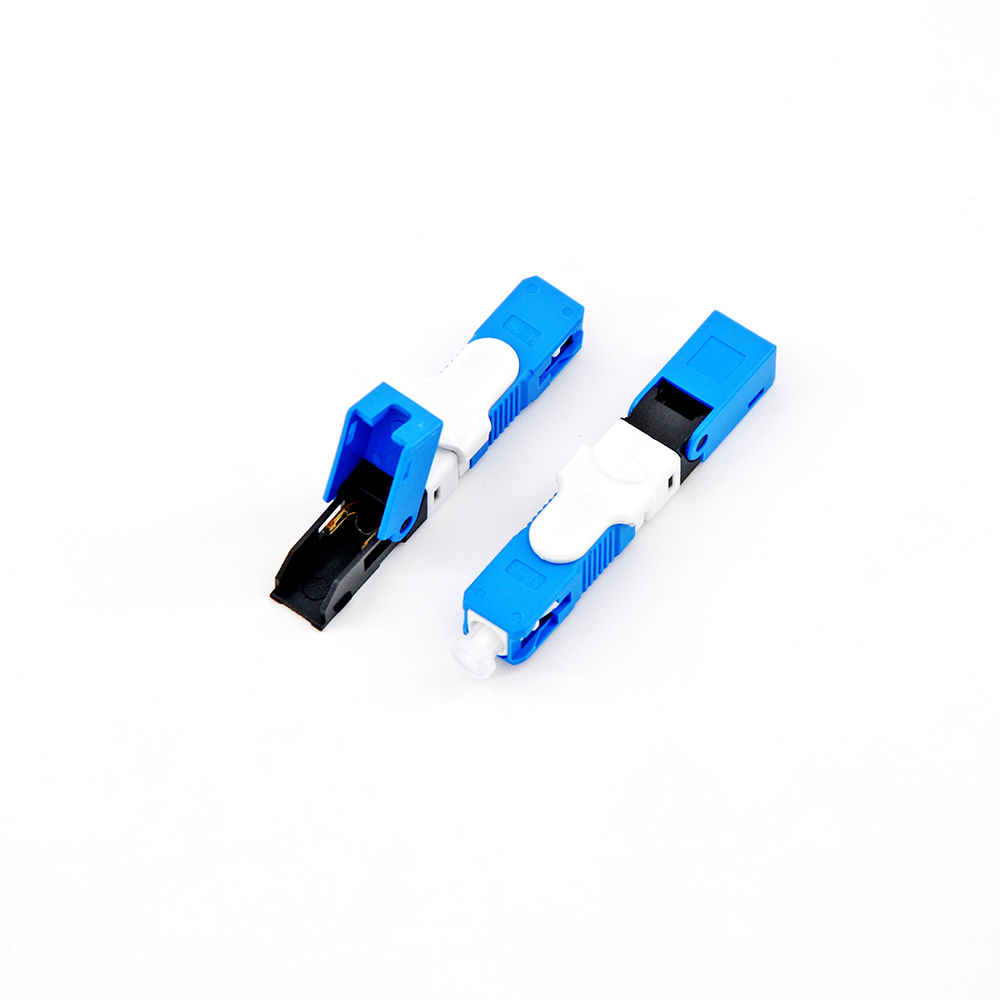

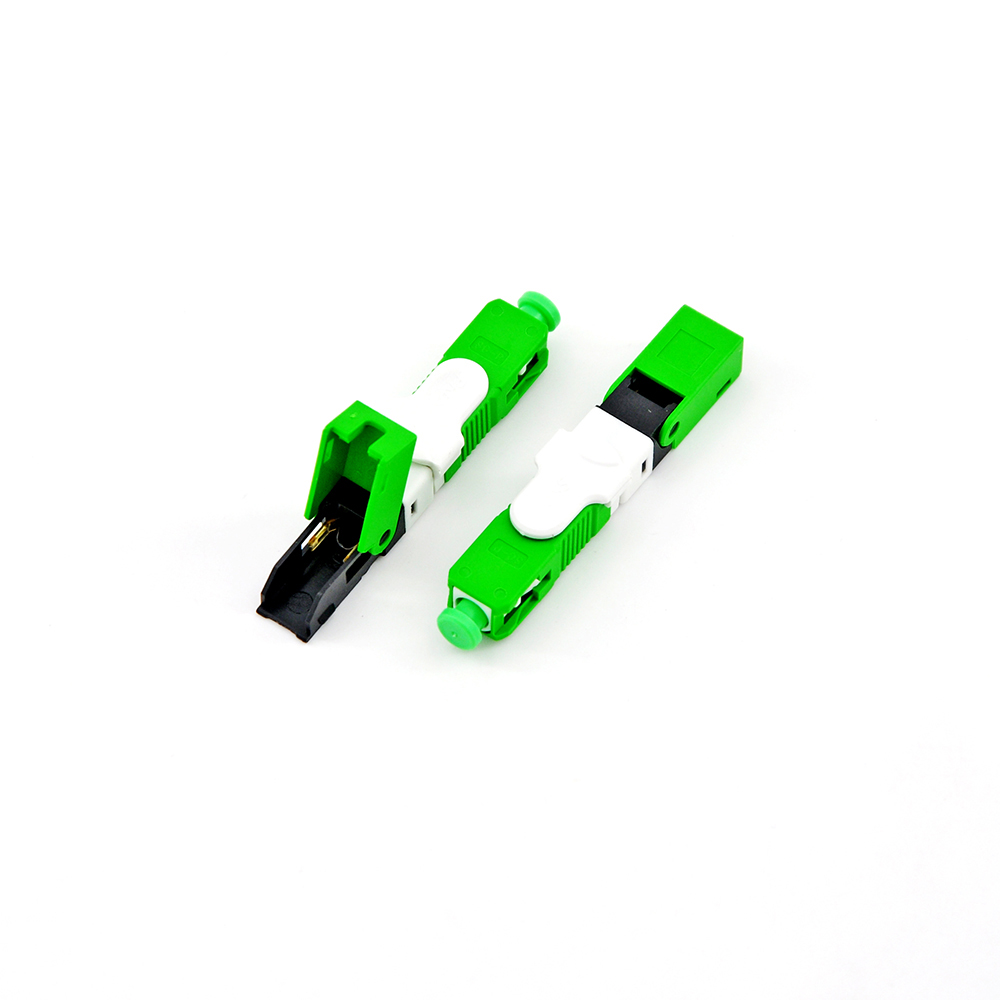

The UT-SC5007 is a compact, 50mm long SC type fast connector designed for quick and easy termination of drop cables and indoor cables. Suitable for both UPC (Ultra Physical Contact) and APC (Angled Physical Contact) polish types, it ensures low insertion loss and high return loss for reliable optical performance. This connector facilitates streamlined installation and maintenance in fiber optic networks, making it a practical choice for residential and commercial premises where fast and secure fiber connections are essential.
| Model No. | UT-SC5007 |
| Connector Type | UPC/APC |
| Length | 50mm |
| Applicable for | Drop cable.Indoor cable |
| Fiber mode | Single mode or Multi mode |
| Operation time | About 50s(no fiber cut) |
| Insertion Loss | ≤0.2dB |
| Insertion Loss Typical value | 0.2dB |
| Return Loss | ≥50dB UPC ≥55dB APC |
| Fastening strength of naked fiber | ≥5N |
| Tensile strength | ≥50N |
| Reusable | ≥10 times |
| Operating Temperature | -40～+85℃ |
