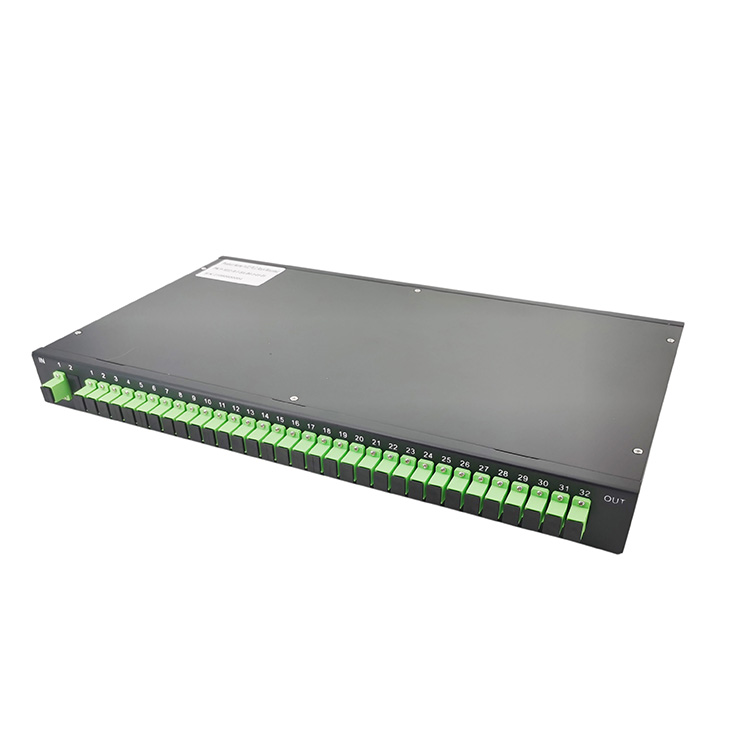

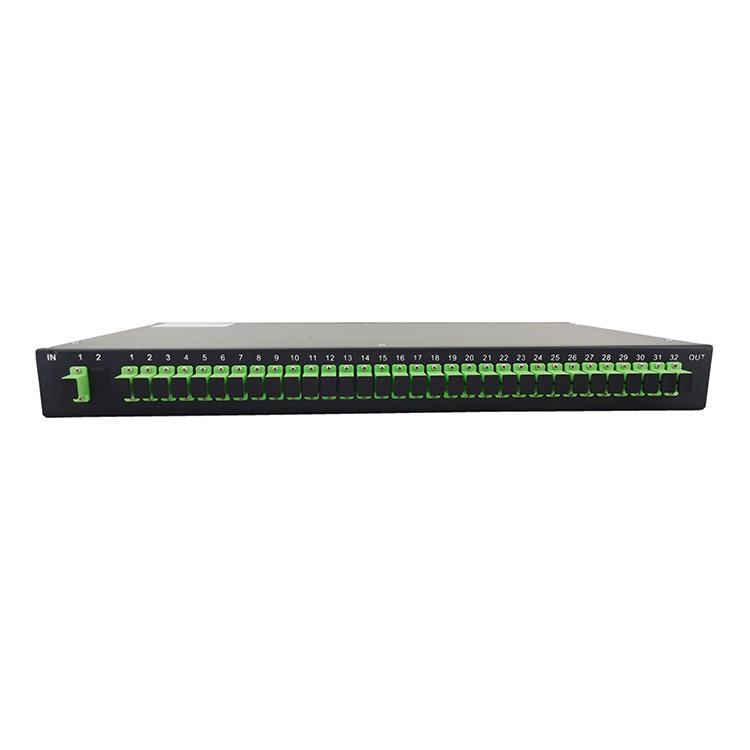

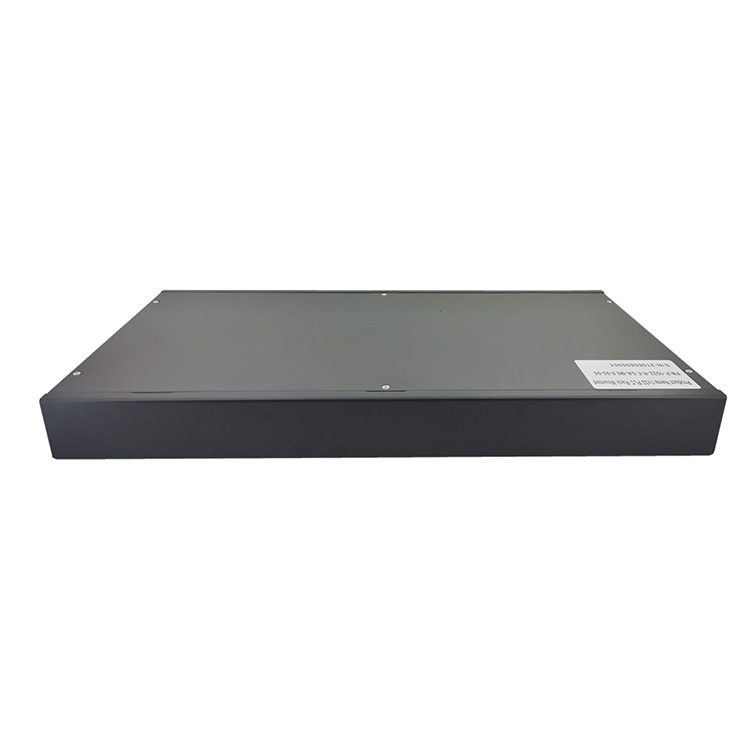

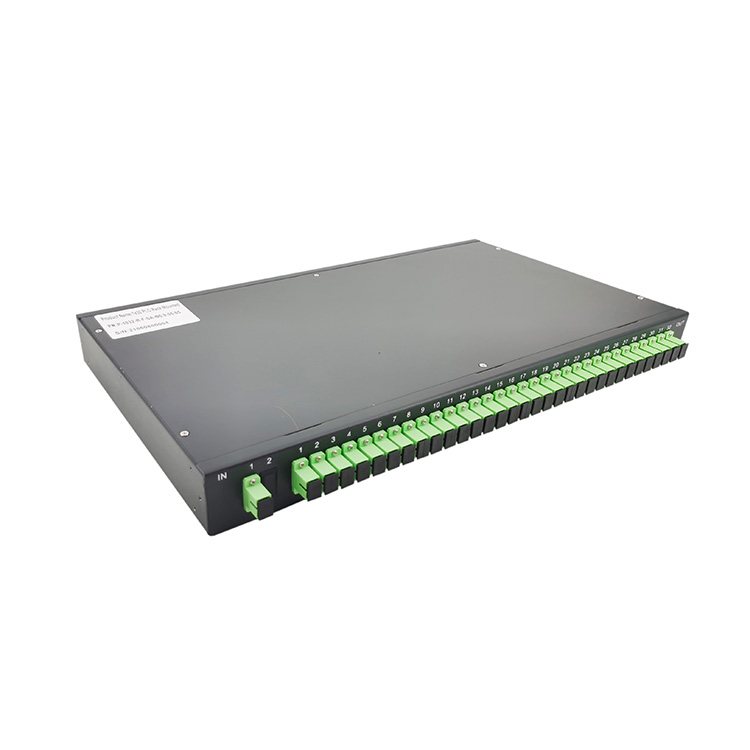

1x32 Rack-Mounted PLC Splitter

【About Product】

UT-King's fiber splitter play an increasingly significant role in many of today’s optical network topologies. They provide capabilities that help users maximize the functionality of optical network circuits from FTTx systems to traditional optical networks. And usually they are placed in the central office or in one of the distribution points (outdoor or indoor).

【Product Feature】

* Low Insertion loss
* Low PDL
* Compact Design
* Good channel-to-channel uniformity
* Wide Operating Wavelength: From 1260nm to 1650nm
* Wide Operating Temperature: From -40°C to 85°C
* High Reliability and Stability

CONTACT +

Parameter

UT-King 1*32 32 Ports Rack Mount Type Fiber Patch Panel Terminal Box Rack Mount PLC Splitter

【Application】
Fiber to The Home (FTTH)
Passive optical networks (PON)
Local Area Networks (LAN)
Cable Television (CATV)
Test Equipment

Item

1x32

Operating Wavelength(nm)

1260-1650

Connector

SC/FC/LC

Ferrule section

UPC/APC

Fiber Type

G657A1 or as customers' order

Insertion loss(dB)

≤13.8

Loss uniformity(dB)

≤1.2

Return Loss(dB)

≥55

Polarization Dependent Loss(dB)

≤0.25

Directivity(dB)

≥55

Temperature correlation loss
-40~85ºC(dB)

≤0.5

Size(mm)(LxWxH)

60×7×4

Working Temperature(ºC)

-40~85

Storage Temperature(ºC)

-40~85
