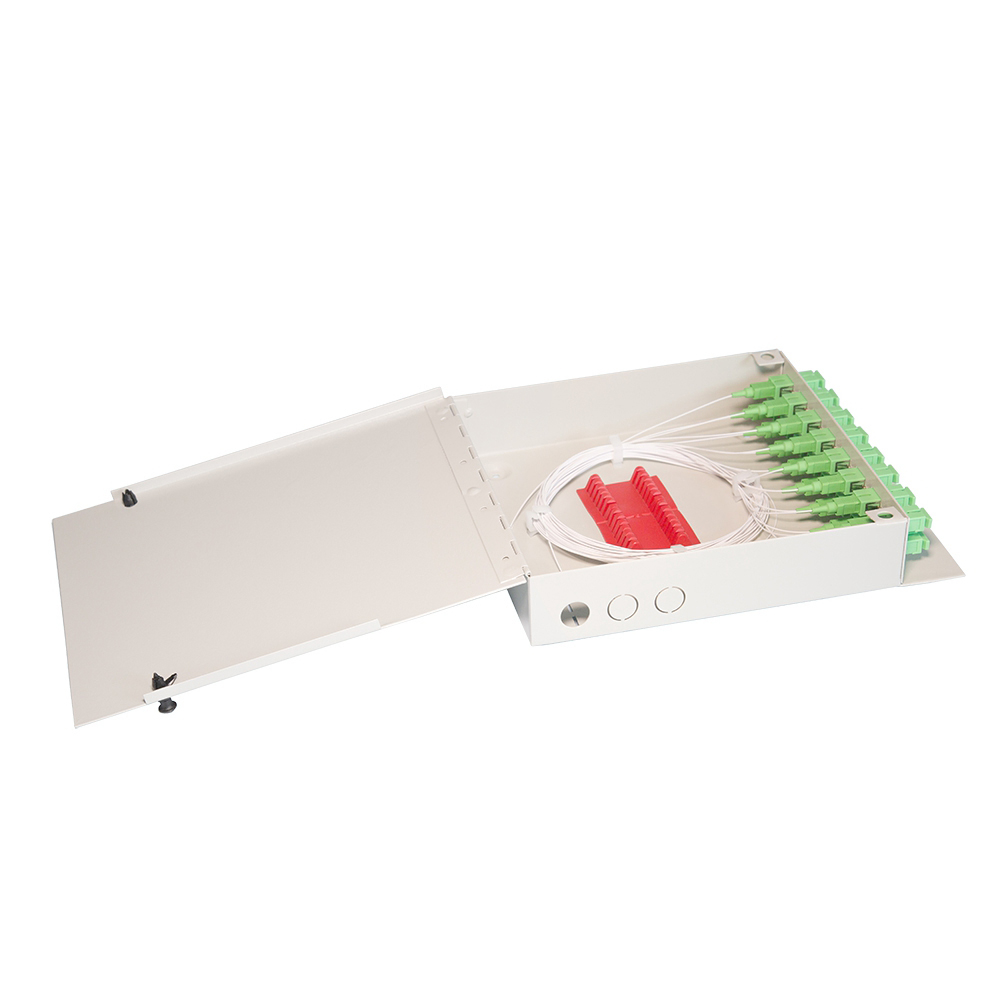

Fbier Terminal box FTB104

This series are used in the end termination of residential builings and villas,to fix and splice with pigtails,Hinge and convenient press button lock design.Wall mounted with mechanical protection system.Max Capacity is 4-16 cores,and 4-16 adapter outputs,available for FC.SC.ST.LC adapters.

Main Features

  •  Small size, light weight, pleasing in appearance
  •  Wall mounted with mechanical protection function
  •  Max fiber capacity 8 fibers
  •  Available for 8 fibers SC adapters (Optional SM, MM or APC/SM)
  •  Material: Plastic
  •  Hinge and convenient press-pull button lock design

CONTACT +

Parameter

Model UT- FTB104 UT- FTB108 UT- FTB116
Dimension 140x105x28mm 200x148x30mm 245x200x48mm
Color Gray Gray Gray
Material Cold-rolled steel Cold-rolled steel Cold-rolled steel
Max ratio 1:4 1:8 1:16
Cable entry ports In 1 Out4 In 1 Out 8 In 1 Out 16
Cable diameter φ50-φ10
Outter carton size 730*315*275mm 750*450*300mm 530*480*390mm
number of Packing 50 pcs/ctn 40 pcs/ctn 20 pcs/ctn
weight 27kg /pcs 27kg /pcs 27kg /pcs
