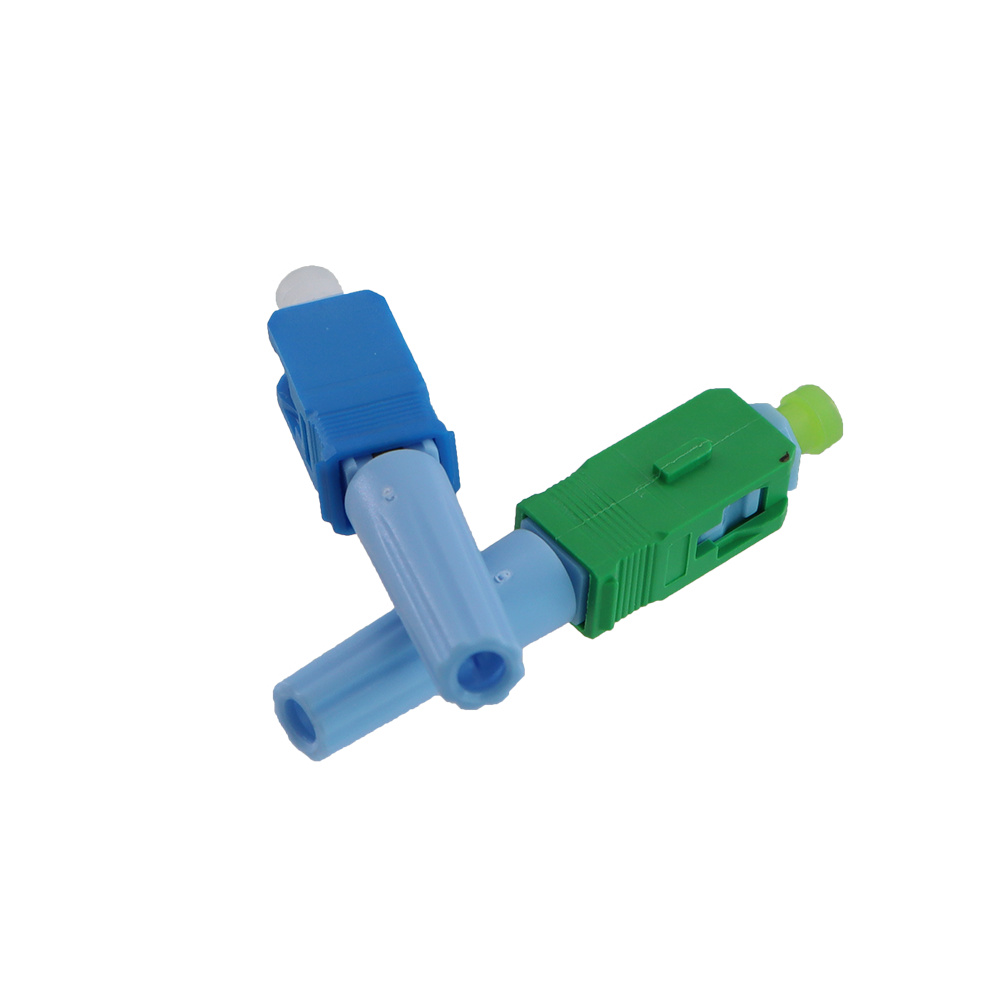

The UT-SC4501 Quick Assembly Connector (No polish Connector) Auto Locking Switch Fast connector SC/APC/UPC Mechanical Field-Mountable Fiber Optic Connector (FMC) is designed to simple the connection without fusion splicing machine. This connector is quick assembly which requires only normal fiber preparation tools: cable stripping tool and fiber cleaver. The connector adopts Fiber Pre-Embeded Tech with superior ceramic ferrule and aluminum alloy V-groove. Also, transparent design of the side cover which allows visual inspection.The Field Assembly Connector series are already a popular solution for optical wiring inside buildings and floors for LAN & CCTV applications and with the expansion of FTTH, is already proving itself to be the connector of choice by incumbents,municipalities, utilities & alternative carriers. Our Field Assembly Optical Connector series are now catering for 250um to 900um, and 2.0mm, 3.0mm diameter single mode and multimode fiber types, including Multi-mode 62.5/125um and Multi-mode 50/125um. The single-mode versions are available with SPC or APC ferrules
|
T-King FTTH Field Quick Assembly SC SM Connector SC Fast Connector UPC APC Fiber Optic Fast Connector
|
|
|
Item
|
Paramete
|
|
Cable Scope
|
2.0mm/3.0mm/3.1*2.0mm cable
|
|
Optical fiber diameter
|
125μ m ( 652 & 657 )
|
|
Tight buffer diameter (μ m)
|
900μ m
|
|
Fiber mode
|
Single & multi mode
|
|
Installation time
|
within 60s ( no fiber cut )
|
|
Insertion loss
|
≤ 0.3dB(1310nm & 1550nm)
|
|
Return loss
|
> -45dB
|
|
Fastening strength of naked fiber
|
> 5 N
|
|
Fastening strength of naked fiber holder
|
> 10 N
|
|
Tensile strength
|
> 50 N
|
|
Using temperature
|
-40~+75
|
